Chromium, as a crucial raw material for stainless steel, has always been an important metallic resource with wide applications, and its demand is closely related to the demand for steel. The most common industrial source of chromium is chromite ore, with global chromite resources mainly distributed in South Africa, India, and Zimbabwe. What are the beneficiation processes and equipment used in processing chromite ore? This article will focus on this question.

What are the chromite beneficiation processes?

Chromite has high hardness, high specific gravity, and diverse mineral composition. Common chromite beneficiation processes mainly include gravity separation, magnetic separation, flotation, and combined beneficiation methods.

1. Chromite Gravity Separation Process and Equipment

Gravity separation utilizes the difference in specific gravity between chromite ore and gangue minerals for separation. Under gravity, heavier chromite ore particles settle faster, while lighter gangue mineral particles settle slower, thus achieving separation. Commonly used chromite beneficiation equipment includes shaking tables, jigs, and spiral sluices.

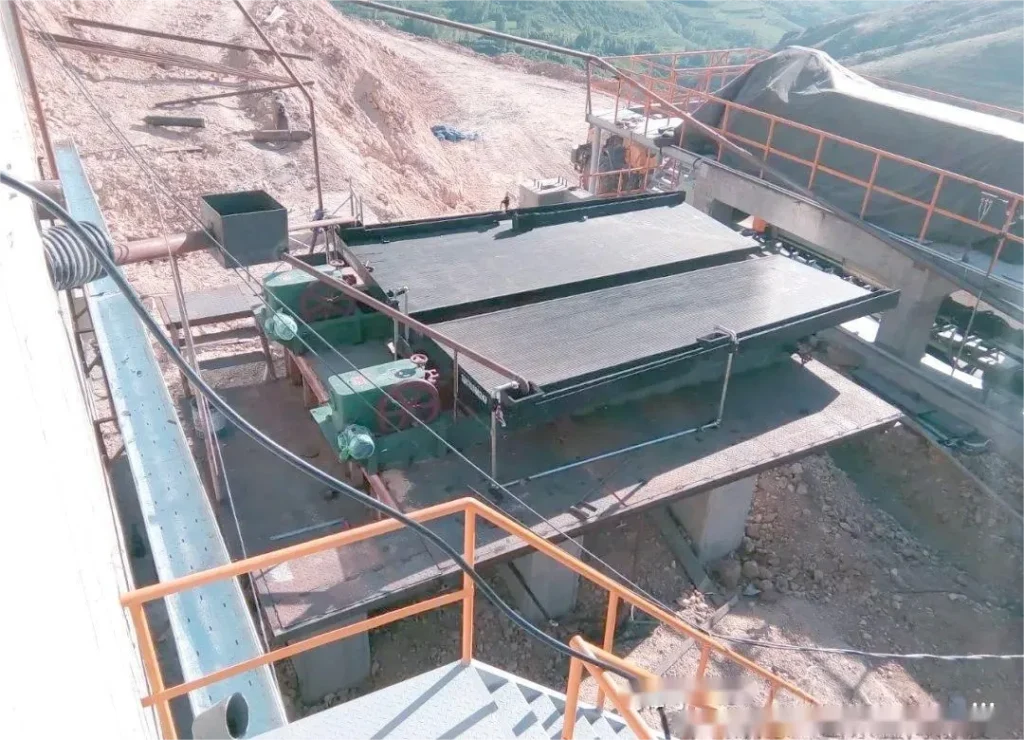

Shaking Table: Through the asymmetrical reciprocating motion of the bed surface and the washing effect of the transverse water flow, minerals of different specific gravities are stratified on the bed surface and move in different directions, thus achieving separation. Shaking tables offer high separation accuracy and are suitable for processing fine-grained chromite ore.

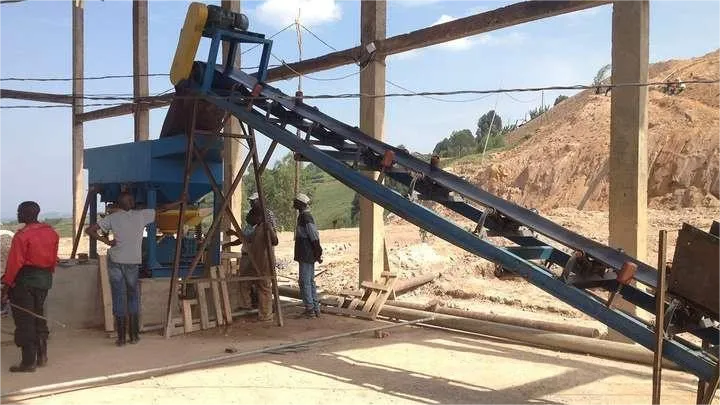

Jig: Utilizing pulsating water flow, the bed layer is loosened, and minerals of different specific gravities are stratified vertically according to their specific gravity. Heavier minerals are at the bottom of the bed, and lighter minerals are at the top, then discharged separately by a discharge device. Jigs have a large processing capacity and are suitable for processing coarse and medium-grained chromite ore.

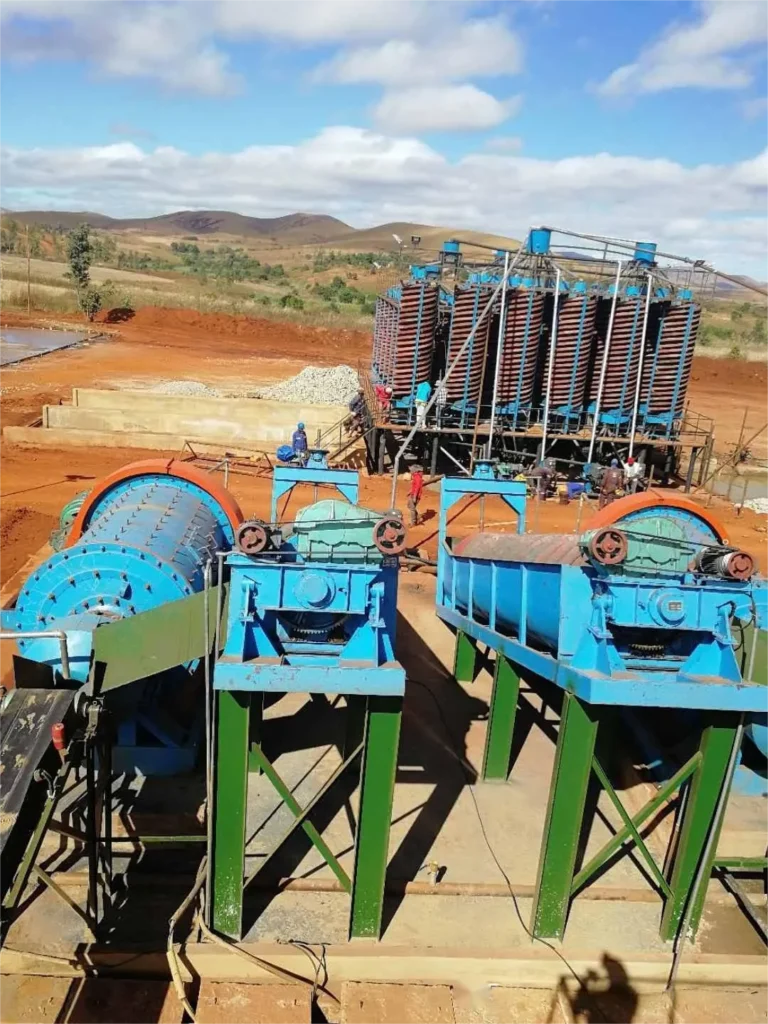

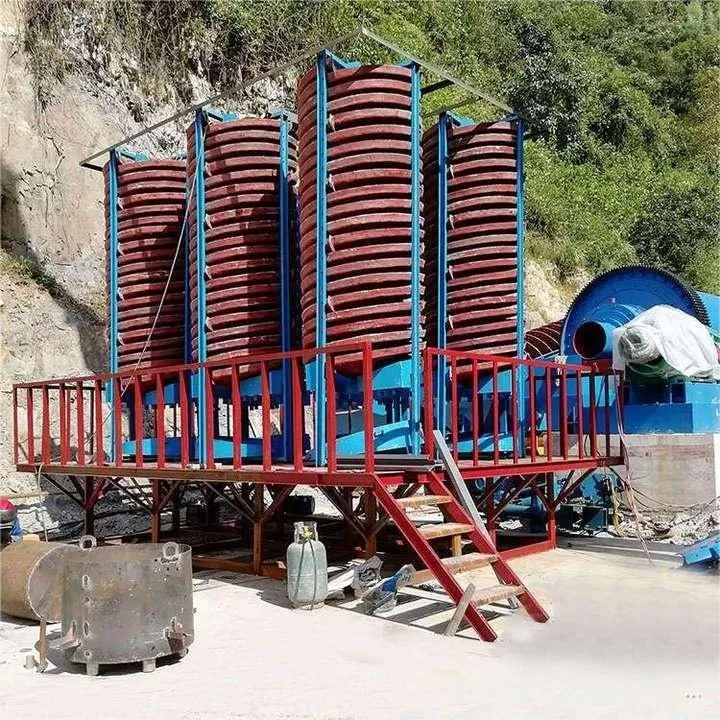

Spiral Conveyor: When the slurry flows in a spiral chute, due to the combined effects of centrifugal force, gravity, and friction, minerals of different specific gravities are stratified at different positions in the spiral chute. Heavier minerals are closer to the inner edge of the chute, and lighter minerals are closer to the outer edge, thus achieving separation. Spiral chutes have a simple structure, small footprint, and are easy to operate, making them suitable for processing medium and fine-grained chromite ore.

2. Chromium Ore Magnetic Separation Process and Equipment

For chromium ore containing magnetic minerals, magnetic separation can effectively separate chromite from magnetic gangue minerals, improving the grade of the chromium ore. Magnetic separation mainly utilizes the magnetic difference between chromite and gangue minerals. Chromite is a weakly magnetic mineral, while some gangue minerals, such as magnetite and hematite, are strongly magnetic. Under the influence of a magnetic field, magnetic minerals are adsorbed onto the magnetic poles of the magnetic separator, while non-magnetic minerals are discharged, thus achieving separation. Commonly used chromium ore beneficiation equipment includes permanent magnet drum separators and wet high-intensity magnetic separators.

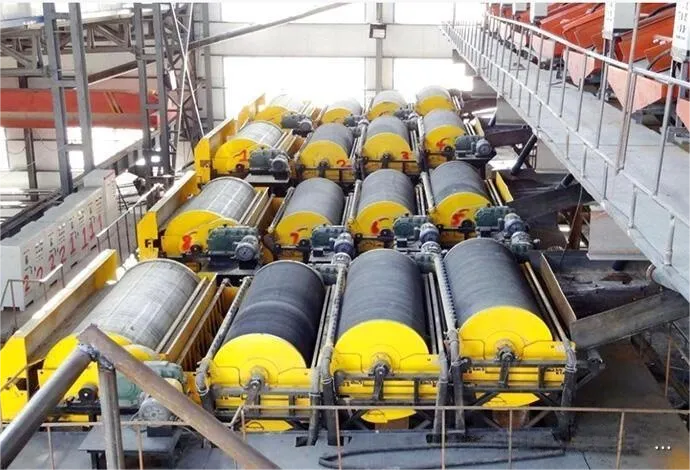

Permanent magnet drum separator: Suitable for processing weakly magnetic minerals, with advantages such as simple structure, convenient operation, and large processing capacity.

Wet high-intensity magnetic separator: Suitable for processing weakly magnetic minerals, with advantages such as high magnetic field strength and good separation effect.

3. Chromium Ore Flotation Process and Equipment Utilizing the differences in the physicochemical properties of mineral surfaces, flotation reagents are added to make the chromite surface hydrophobic, thereby separating it from gangue minerals. Flotation is suitable for separating fine-grained chromite ores, especially those with complex associations with gangue minerals and small specific gravity differences. However, flotation requires chemical reagents, resulting in high costs and environmental impact. Commonly used chromite beneficiation equipment includes mechanically agitated flotation machines and aerated flotation machines.

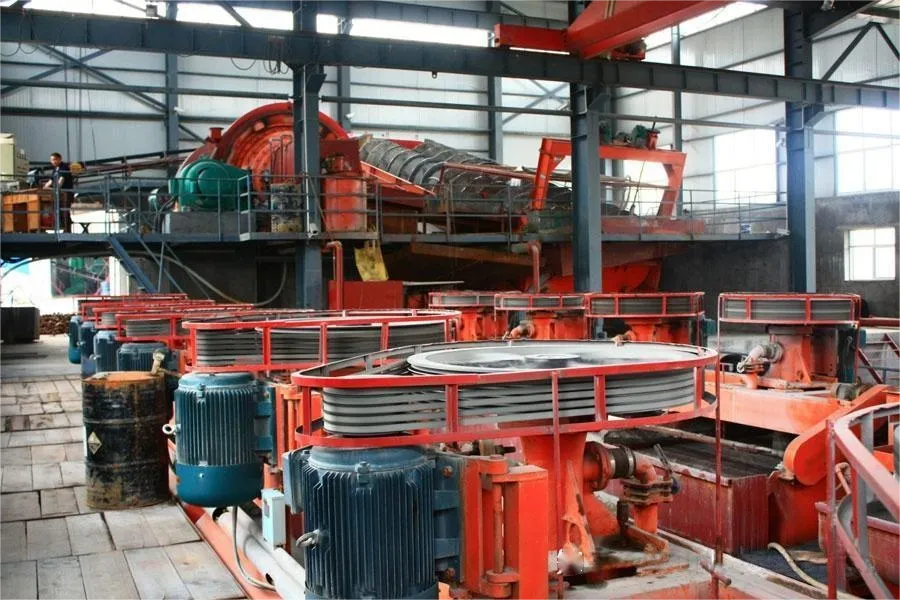

Mechanically Agitated Flotation Machines: These are self-aspirating flotation machines that rely primarily on mechanical agitators (rotator and stator) to aerate and agitate the slurry. They are self-aspirating for both air and slurry, requiring no external aeration device, and middlings return does not require pump transfer. Commonly used equipment in chromite beneficiation includes the SF type and BF type mechanically agitated flotation machines.

Aerated and stirred flotation machine: This type of flotation machine uses external air supply and relies mainly on mechanical agitators to stir the slurry and blowers for aeration. This type of flotation machine cannot self-aspirate; a head pump is required to transport the slurry when returning middlings. Additionally, dedicated air supply equipment is necessary. Commonly used equipment in hematite beneficiation includes the XCF type aerated and stirred flotation machine, the KYF type aerated and stirred flotation machine, and the XCF-KYF flotation unit.

4. Combined Beneficiation Process and Equipment for Chromium Ore

Due to the complex properties of chromium ore, single beneficiation methods often fail to achieve ideal results. Therefore, combined beneficiation methods are commonly used, integrating gravity separation, magnetic separation, flotation, and other methods to fully leverage their respective advantages and improve the recovery rate and grade of chromium ore. This method is suitable for various types of chromium ore, and is particularly effective for ores with complex properties that are difficult to process using single beneficiation methods.

The main steps of a traditional chromium ore beneficiation process are as follows:

Traditional chromium ore beneficiation processes include three main steps: crushing and grinding, gravity separation and magnetic separation, and flotation.

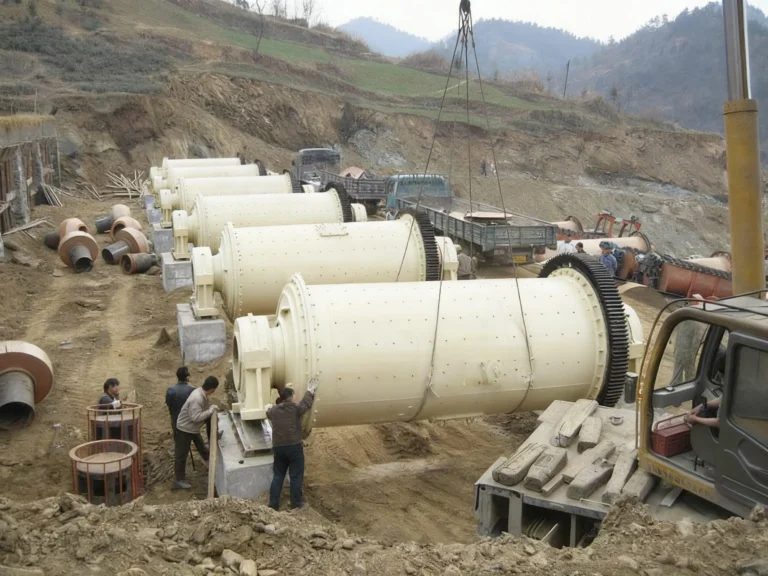

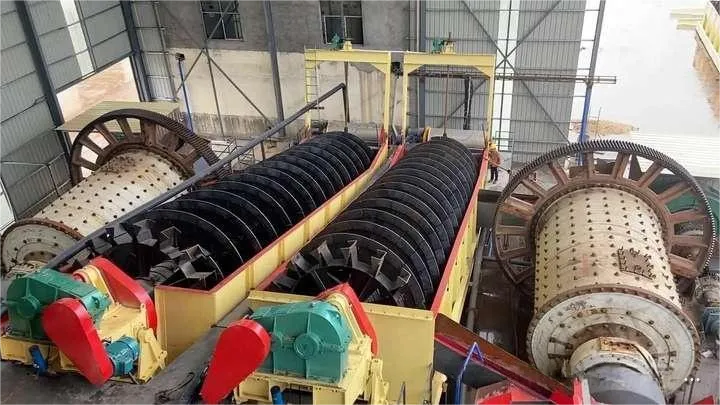

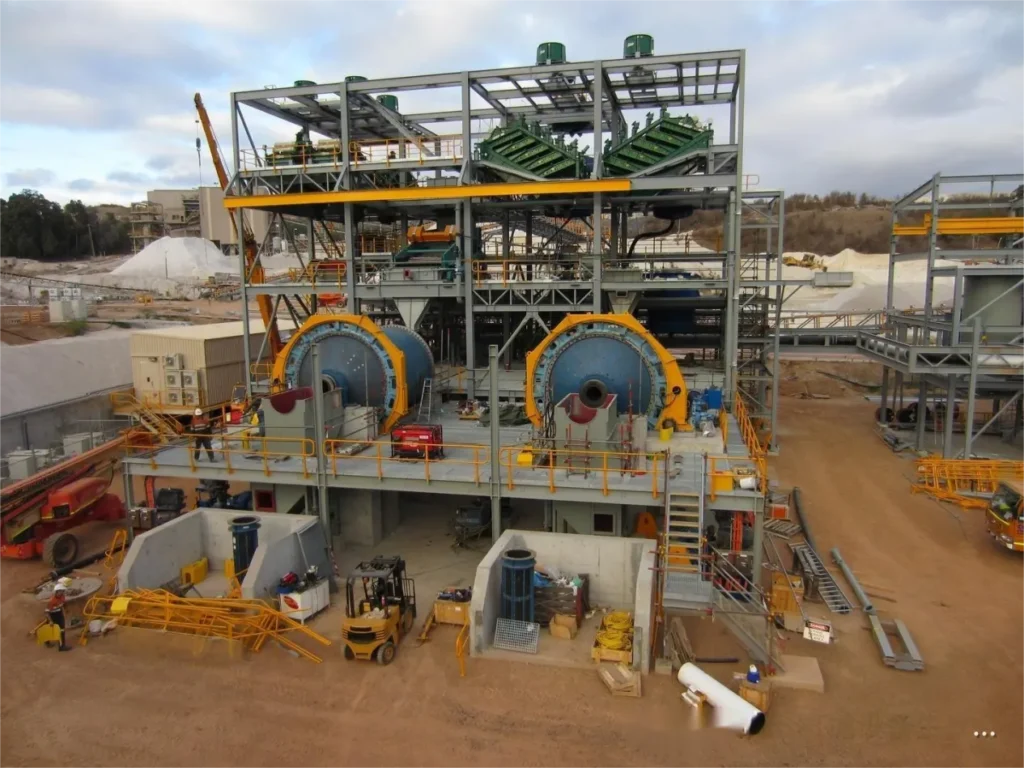

**Crushing and Grinding:** Crushing and grinding is the first step in the traditional beneficiation process. It breaks the chromium ore to a certain particle size to facilitate subsequent separation operations. The efficiency of the crushing and grinding process directly affects the subsequent separation effect and determines the degree of liberation of the chromium minerals.

**Gravity Separation-Magnetic Separation:** Based on the differences in density and magnetic properties between chromium ore and gangue minerals, the traditional process uses gravity separation and magnetic separation to initially separate the chromium ore from the gangue minerals. Gravity separation uses equipment such as jigs and shaking tables, while magnetic separation uses wet or dry magnetic separators, separating minerals based on the magnetic field strength and differences in mineral magnetic properties.

**Flotation:** For minerals with similar density and magnetic properties, the traditional process uses flotation for further separation. Flotation improves the grade and recovery rate of the chromium ore by adjusting reagents and flotation conditions.

Optimization of Chromium Ore Beneficiation Process and Equipment:

To improve resource utilization and reduce environmental pollution in chromium ore beneficiation, modern chromium ore beneficiation processes have undergone multifaceted optimization.

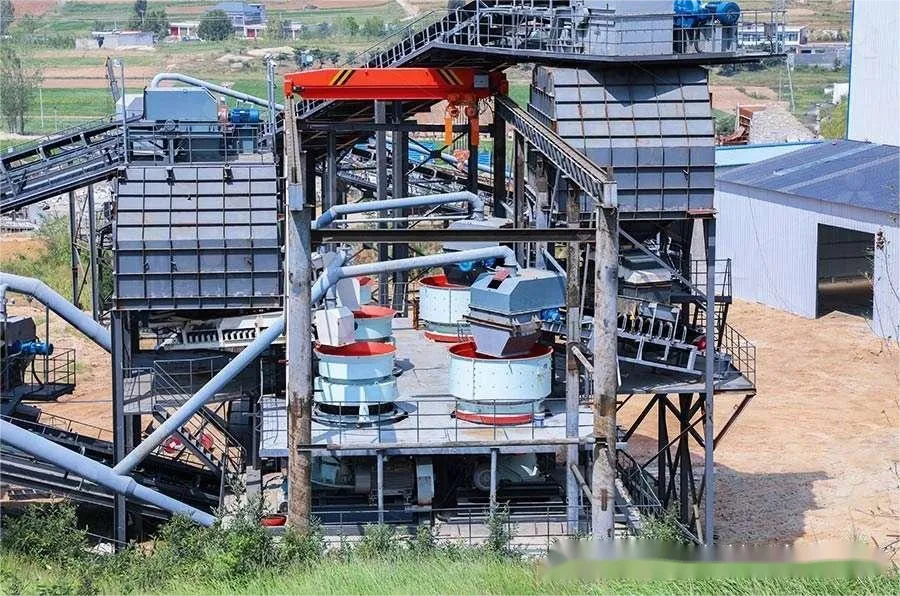

1. Crushing and Grinding Process Optimization: High-efficiency and energy-saving equipment such as jaw crushers and cone crushers are used in the crushing process to improve crushing efficiency and reduce energy consumption. Grinding fineness is optimized by adjusting parameters such as grinding time, media, and concentration, thereby improving the liberation degree of chromium minerals. Appropriate crushing and grinding processes are selected based on ore properties and product requirements to reduce process energy consumption and costs.

2. Gravity Separation Process Optimization: Technical improvements have been made to chromium ore beneficiation equipment such as jigs and shaking tables, improving equipment structure and performance and increasing separation efficiency. The application of heavy media separation in chromite beneficiation is studied, and suitable heavy media types and separation conditions are explored based on ore properties. Gravity separation is combined with other beneficiation methods such as flotation and magnetic separation to form complementary combined processes, improving overall recovery rates.

3. Magnetic Separation Process Optimization: Chromium ore beneficiation equipment utilizes high-efficiency, high-gradient wet or dry magnetic separation equipment, such as wet magnetic separators and dry magnetic separators. By adjusting magnetic separation conditions such as magnetic field strength and feed concentration, effective separation of gangue minerals is achieved. Combining magnetic separation with gravity separation and flotation further improves the separation effect and increases the recovery rate of valuable minerals.

4. Flotation Process Optimization: Traditional chromium ore beneficiation flotation equipment undergoes technological upgrades, such as improving the aeration method and stirring intensity of the flotation machine to increase flotation efficiency. The flotation process flow is optimized according to ore properties and product requirements, including the configuration of roughing, cleaning, and scavenging processes. Combining flotation with gravity separation and magnetic separation forms a multi-method combined beneficiation process, improving the overall recovery rate. Through continuous technological innovation and practical accumulation, the flotation process is continuously optimized to adapt to changes in different ore types and market demands.

Optimizing the chromite beneficiation process can not only improve resource utilization and reduce waste, meeting the needs of modern sustainable mineral resource utilization, but also significantly reduce environmental pollution caused by beneficiation. By optimizing the process, upgrading chromite beneficiation equipment, and improving fine grinding and separation technology, not only has production efficiency been improved, but the efficient recovery and utilization of chromite resources has also been achieved, laying the foundation for the industry’s green transformation.

Due to the properties of chromium, chromite beneficiation processes include gravity separation, magnetic separation, flotation, combined beneficiation, and chemical beneficiation. Industrially commonly used processes include single gravity separation, single magnetic separation, and combined gravity-magnetic separation. Generally speaking, chromite contains a certain amount of iron; therefore, combined gravity-magnetic separation is a relatively common chromite beneficiation process. Of course, the specific beneficiation process adopted depends on the indicators obtained after beneficiation tests. In the selection of chromite beneficiation equipment, shaking tables and jigs are mostly used in the gravity separation stage, while the equipment selection for the magnetic separation stage depends on the magnetic properties of the ore.

Let’s look at some specific chromium ore beneficiation processes and equipment examples. A chromium ore mine in the Philippines has a chromium oxide content of 23.47%, containing small amounts of pyrite and nickel pyrite. The gangue minerals are mainly serpentine and a small amount of carbonates. In beneficiation tests, magnetic separation, shaking tables, and spiral sluices were used for roughing and tailings removal. The results showed that shaking tables and spiral sluices were effective at removing tailings, but the tailings yield of spiral sluices was low. Therefore, shaking tables were used for separation. After expanding the test scale, experiments were conducted on the grinding variable. The final chromium ore beneficiation process adopted was a single-stage shaking table roughing, followed by direct re-concentration of the middlings from the shaking table, merging the middlings from the roughing concentrate, and the re-concentration concentrate. This process yielded a concentrate yield of 57.19%, a chromium oxide grade of 37.46%, and a recovery rate of 88.78%.

A low-grade chromite ore in Yunnan Province had a chromium oxide content of only 8.51%, a chromite content of 16.81%, and a magnetite content of only 0.65%. The gangue minerals mainly included serpentine and quartz, resulting in a complex composition. Initially, a classification and desliming test was conducted using a hydrocyclone with a 6mm diameter underflow inlet, effectively enriching the raw ore and achieving a chromium oxide grade of 18.52%. Subsequent single shaking table and high-gradient magnetic separation tests showed that the shaking table only achieved good enrichment, with a chromium oxide grade of 40.56%, while high-gradient magnetic separation only achieved a chromium oxide grade of 38.93%. A combined magnetic-gravity separation test was then performed, yielding a chromium oxide grade of 45.29%. Therefore, the suitable beneficiation process for this mine is a classification and desliming combined magnetic-gravity separation process.

A certain chromite ore had a chromium oxide content of 35.28% and a ferrous oxide content of 8.55%. Its structure was relatively simple, with coarse grains and high liberation. The main gangue minerals included olivine, serpentine, and chlorite. After comparing shaking table gravity separation, shaking table-high-intensity magnetic separation, and high-intensity magnetic separation processes, the wet high-intensity magnetic separation process yielded better results. The final process adopted was wet high-intensity magnetic separation-roughing-scavenging, resulting in a chromium oxide concentrate grade of 47.61% and a recovery rate of 96.26%.

From the above cases, we can summarize some conclusions:

1. For rich ores with high chromium oxide content, a single gravity separation or magnetic separation process can be used.

2. For chromium ores with low chromium oxide content, a combined magnetic-gravity separation process often yields better results than a single process.

3. The specific process flow should be determined based on the properties of the ore itself.

By now, you should have a basic understanding of chromium ore beneficiation processes. When selecting a chromium ore beneficiation process and equipment, you can refer to beneficiation test indicators, consult qualified beneficiation equipment manufacturers, and adopt appropriate process flows and equipment configurations to reduce costs and improve economic efficiency.

The above is an introduction to the chromium ore beneficiation process flow and equipment. In actual beneficiation plants, due to the differences in the properties of chromium ore, the beneficiation methods also vary. Although the general process flow is similar, there are differences in every detail. Therefore, it is recommended to conduct beneficiation tests and design a suitable chromium beneficiation process based on your specific circumstances to improve chromium beneficiation efficiency, achieve high-efficiency recovery of the beneficiation plant, and obtain a high return on investment.
