Manganese iron ore is a manganese iron oxide mineral, belonging to the magnetite series of the spinel group . Due to its unique structure, composition, and chemical properties, manganese iron ore requires unique processing methods.
Manganese iron ore is a manganese iron oxide mineral, belonging to the magnetite series of the spinel group . Due to its unique structure, composition, and chemical properties, manganese iron ore requires unique processing methods. The beneficiation process necessitates selecting appropriate beneficiation equipment based on ore properties, mineral composition, and economic considerations. This article, based on industry data and market information, systematically reviews the types, working principles, core features, mainstream manufacturers, and price ranges of manganese iron ore beneficiation machines, providing a reference for beneficiation enterprises.
With the continuous development and utilization of manganese iron ore resources, the amount of recoverable resources is gradually decreasing, leading to a continuous decline in the grade of raw ore. At the same time, the quality requirements for beneficiated products in subsequent processing stages such as smelting are constantly increasing. These factors together are driving the evolution of manganese iron ore beneficiation machines towards larger, better, and more energy-efficient designs. So, what are some commonly used manganese iron ore beneficiation machines in the current mineral processing industry?
Main types and principles of manganese iron ore beneficiation machines:

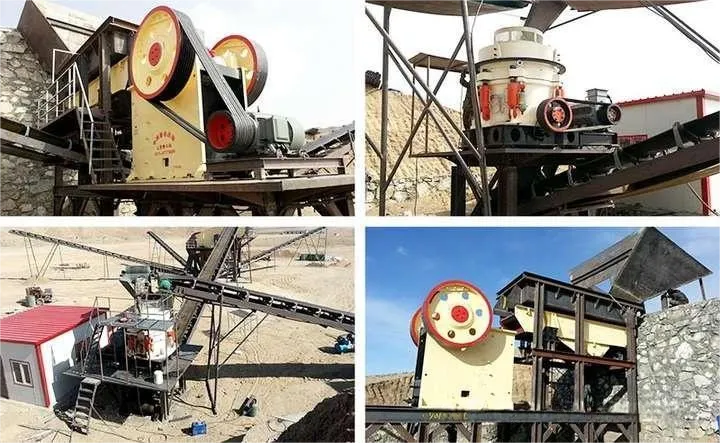

1. Manganese iron ore beneficiation machine – crusher

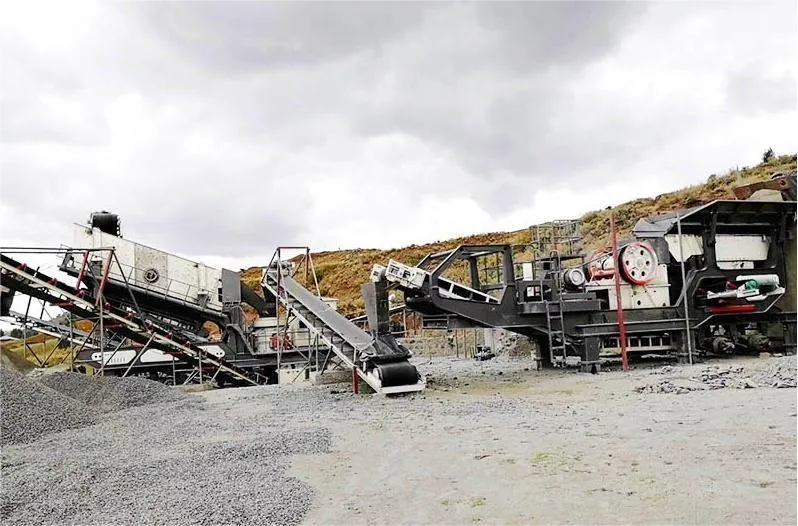

Jaw crusher
Principle: The ore is crushed by the periodic squeezing motion of the fixed jaw plate and the movable jaw plate, which is suitable for the primary crushing stage.
Features: Large crushing ratio, simple structure, low maintenance cost, suitable for processing high hardness ores.
Application scenario: coarse crushing of manganese iron ore to provide raw materials of suitable particle size for subsequent grinding or sorting.

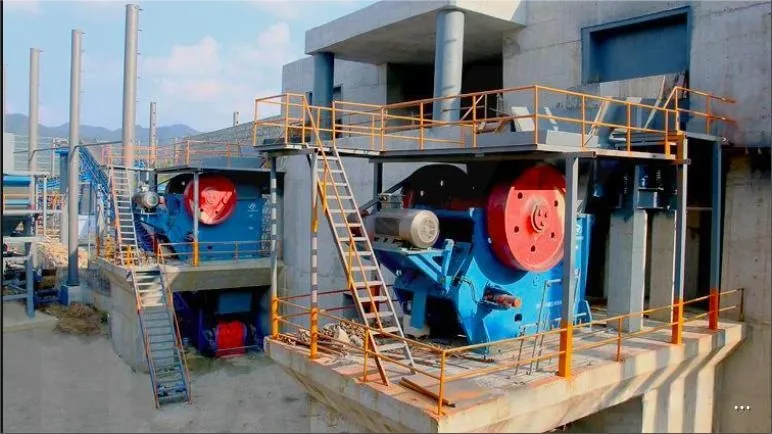

Hammer crusher
Principle: High-speed rotating hammers impact the ore, combined with impact plates to achieve medium and fine crushing.
Features: High crushing efficiency, suitable for medium hardness ores, but poor adaptability to ores with high moisture content.
2. Manganese iron ore beneficiation machine – grinding mill

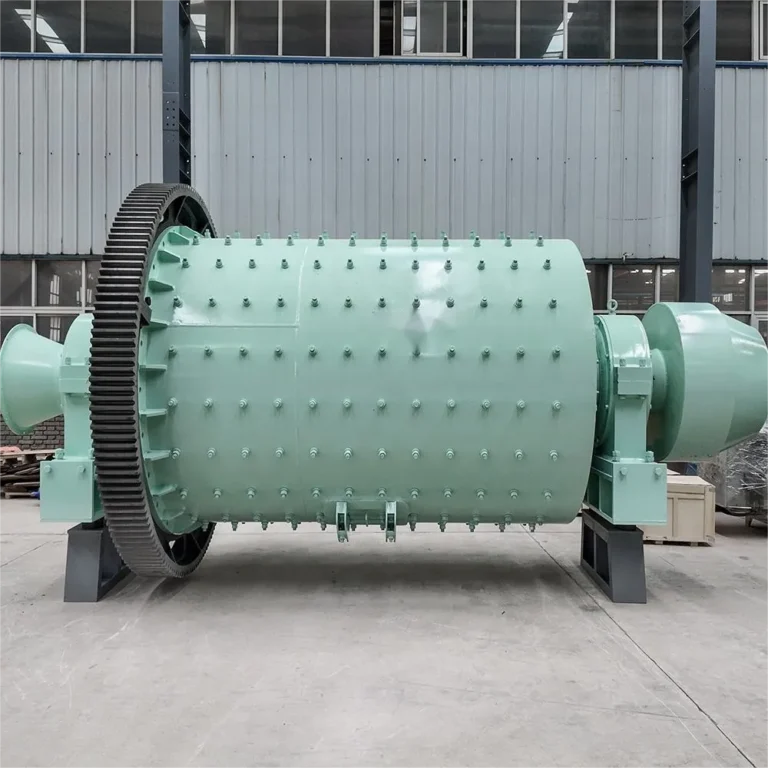

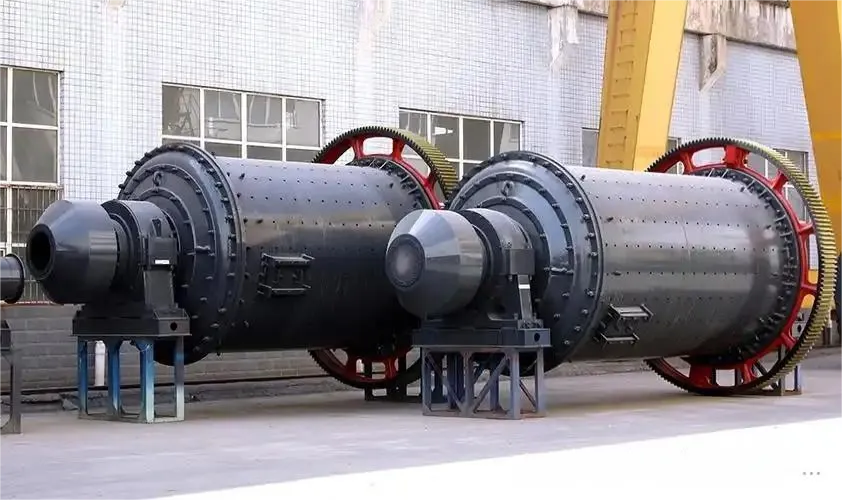

ball mill
Principle: The steel balls inside the cylinder grind the ore through impact and grinding during rotation.
Features: The grinding particle size is uniform, suitable for fine grinding of manganese iron ore, but the energy consumption is relatively high.
3. Manganese iron ore beneficiation machine – separator

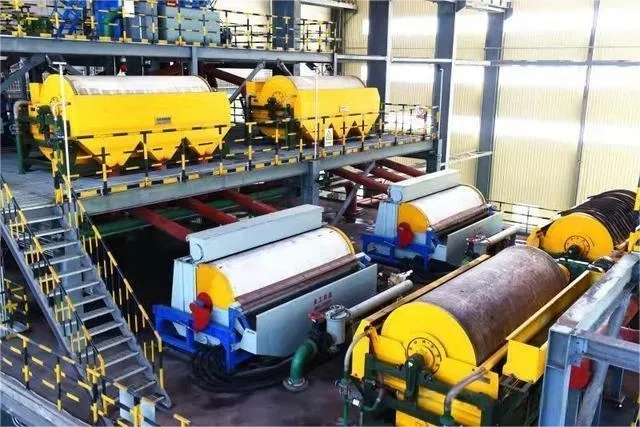

Magnetic separator
Principle: Separation is achieved by using the magnetic difference between magnetic minerals (such as magnetite) and non-magnetic minerals in manganese iron ore through magnetic field adsorption.
type:
Wet high-intensity magnetic separators (such as the GCTS type ): with magnetic field strength exceeding 10,000 GS, suitable for processing fine-grained minerals, with high recovery rate.
Dry magnetic separator: suitable for water-scarce areas or ore pretreatment.
Features: High sorting efficiency and environmentally friendly, especially suitable for manganese iron ore with high iron content.
Reselection equipment

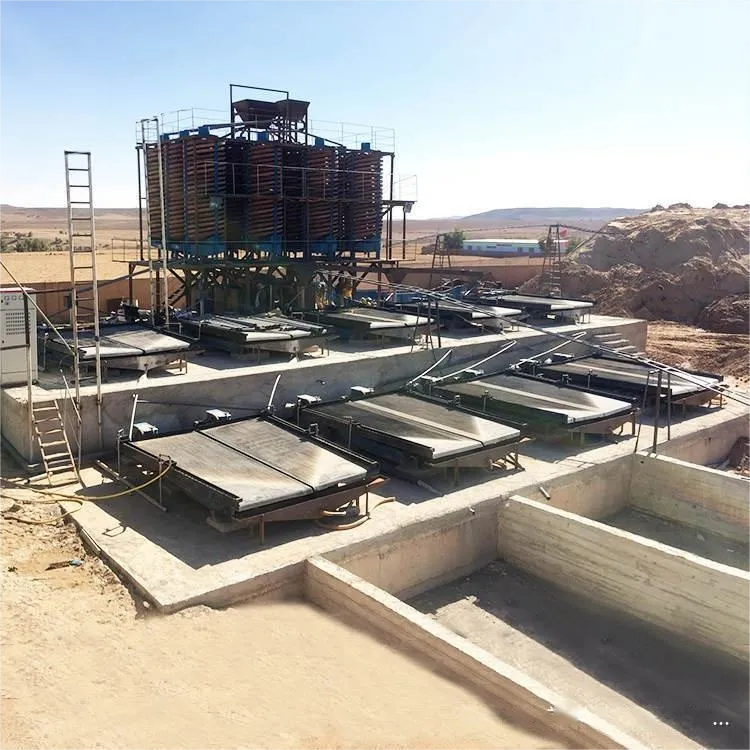

Principle: Based on the difference in mineral density, separation is achieved by means of water flow, vibration, or centrifugal force. Commonly used equipment includes jigs and spiral chutes.
Jigging machine: It uses pulsed water flow to separate minerals into layers, and heavy minerals sink and are collected.
Spiral chute: Uses centrifugal force within the spiral chute to separate light and heavy minerals.
Features: No chemical reagents required, low cost, suitable for pre-selection of coarse-grained ores.

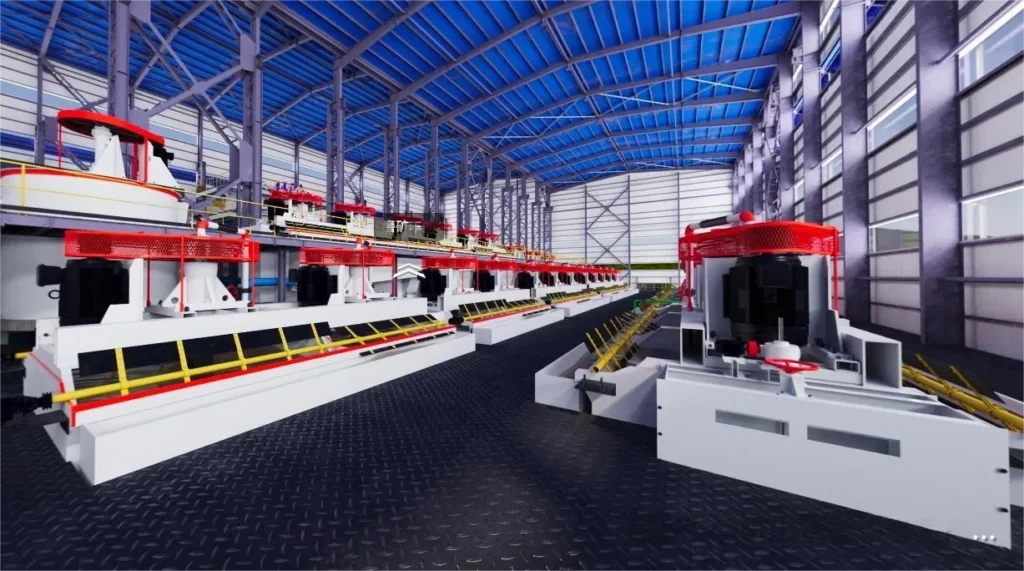

flotation machine
As the core equipment in flotation mineral processing, the flotation machine is specifically designed to complete the flotation process. It agitates the slurry after it has been treated with reagents, allowing certain mineral particles to selectively adhere to the air bubbles. These particles then float to the surface of the slurry and are scraped off, forming a frothy product. The remaining unattached particles remain in the slurry, achieving effective mineral separation.
Principle: By adding reagents to change the surface properties of minerals, the target minerals are caused to adhere to air bubbles and float to the surface for separation.
Features: Suitable for processing fine-grained ores, but the reagent cost is relatively high.
High voltage electrostatic separator
Principle: Separation is achieved by utilizing the differences in the conductivity of minerals in a high-voltage electric field. This method is suitable for non-magnetic minerals.
4. Manganese iron ore beneficiation machine – auxiliary beneficiation machine
Auxiliary equipment is equally indispensable in the beneficiation process of manganese iron ore, playing a crucial role in the conveying, processing, and classification of slurry. This auxiliary equipment includes vibrating feeders for uniform and continuous slurry delivery; trough feeders specifically designed for quantitative slurry feeding; mixing tanks to ensure thorough mixing and blending of the slurry; bucket elevators for efficient lifting and conveying of bulk materials; pendulum feeders for precise control of feed rate; electromagnetic vibrating feeders for continuous and stable feeding; high-efficiency thickeners for slurry concentration and dewatering; disc granulators to form fine particles into the desired shape and size; disc feeders for uniform and continuous delivery of granular material; shaking tables and spiral chutes for further mineral classification and refining; and cement mills/raw material mills and MBS-type rod mills, which play a vital role in the crushing and grinding of minerals.
The core features of manganese iron ore beneficiation machines:
Magnetic separator
High magnetic field strength: The magnetic field strength of wet high-intensity magnetic separators can reach over 10,000 GS, improving the recovery rate.
Energy and water saving: The GCTS equipment adopts magnetic focusing technology, which reduces water consumption by 50% and saves energy by 20%-50%.
Durability: The magnetic system is made of wear-resistant materials, extending its service life.
Reselection equipment
Low cost: No complicated reagents required, and maintenance is simple.
Highly adaptable: It has a significant effect on processing ores with high mud content.
flotation machine
High-precision sorting: capable of processing fine-grained minerals and improving concentrate grade.
Flexibility: The reagent formulation can be adjusted to suit different ore types.
The main gangue components in manganese iron ore are silicon-containing substances (such as silicon dioxide), while iron and manganese oxides have a higher specific gravity than silicon-containing substances. Therefore, gravity separation can remove some of the gangue minerals. For fine-grained manganese iron ore, it is difficult to obtain ideal results using gravity separation alone. However, for coarse-grained manganese iron ore, gravity separation can effectively recover valuable minerals. Jigging machines are generally used for separation, which are effective in desilication and can also remove some iron, effectively improving the recovery rate and grade of manganese ore. In actual production, gravity separation is not very flexible and is often combined with other processes to form a combined process flow, such as gravity-flotation or gravity-magnetic combined beneficiation processes. Common manganese iron ore beneficiation machines include jigs, shaking tables, and hydrocyclones. Jigs are suitable for coarse-grained separation, while shaking tables and hydrocyclones are suitable for fine-grained separation.
Iron in manganese iron ore exists in the form of iron oxide and is weakly magnetic; therefore, magnetic separation is effective in removing iron minerals. High-intensity magnetic separators are generally used for separation, resulting in good iron removal and high-grade manganese concentrate recovery. In mineral processing, magnetic separation is simple to operate, easy to control, and highly adaptable. When magnetic separation alone cannot effectively obtain high-quality concentrate, it is often combined with roasting to form a magnetized roasting process to improve concentrate grade. Common manganese iron ore beneficiation machines include wet magnetic separators, high-gradient magnetic separators, and dry magnetic separators. Wet and high-gradient magnetic separators are suitable for fine-grained manganese iron ore beneficiation.
Manganese iron ore flotation exhibits good selectivity. For fine-grained or micro-fine-grained manganese iron ore, flotation can separate it from gangue minerals to obtain manganese concentrate. However, manganese iron ore has a complex composition, poor floatability, and is prone to mud formation, making single flotation difficult, and resulting in high reagent consumption and costs. In mineral processing, it is often combined with magnetic separation to form a magnetic-flotation integrated process (2022 National Online Conference on Mineral Processing Technology Innovation and Application) to achieve manganese iron ore flotation. Common manganese iron ore concentrators include: mechanically agitated flotation machines (SF type, BF type) and aerated agitated flotation machines (XCF type, KYF type). SF and XCF types are mostly used in large concentrators for roughing, scavenging, and cleaning operations; BF types are used in medium and small-sized concentrators for roughing or cleaning operations.
Future development trends of manganese iron ore beneficiation machines:
Intelligentization: Introducing IoT and AI technologies to achieve real-time monitoring and optimization of equipment operating status.
Environmental friendliness: Develop equipment with low water consumption and low chemical usage to reduce environmental pollution.
Integration: Modular design shortens the installation cycle and reduces overall costs.
Price range and purchasing advice for manganese iron ore beneficiation machines:
Price range of manganese iron ore beneficiation machines
Magnetic separators: Wet high-intensity magnetic separators cost approximately 200,000-300,000 yuan (such as the GCTS model), while dry magnetic separators are cheaper.
Crushing equipment: Jaw crusher costs approximately 500,000 to 500,000 yuan, and hammer crusher costs 100,000 to 300,000 yuan.
Gravity separation equipment: jig (100,000-200,000 yuan), spiral chute (50,000-150,000 yuan).
Flotation machine: Prices range from 150,000 to 500,000 yuan depending on the specifications.
Factors affecting the price of manganese iron ore beneficiation machines:
The price of manganese iron ore beneficiation machines in the market fluctuates greatly, and the influencing factors can be divided into primary and secondary factors. The following is a brief analysis of these influencing factors.
1. Dominant Factors
(1) Quality: Quality is the fundamental factor affecting the price of manganese iron ore beneficiation machine. Since there are good and bad quality, the benefits are also different. A high-quality manganese iron ore beneficiation machine brings high benefits, has a large user demand, and naturally has a high price. Conversely, a manganese iron ore beneficiation machine of average quality has a relatively low price.
(2) Manufacturing cost: The cost invested by manganese iron ore beneficiation machine manufacturers in raw materials, labor, and processing facilities will also directly affect the price. The higher the manufacturing cost, the higher the price.
(3) Model size: The main models of manganese iron ore beneficiation machines are large, medium and small. Different models of manganese iron ore beneficiation machines have different processing capacity, power and cost, and their prices also vary.
2. Secondary factors
(1) Market competitiveness: When there are many manufacturers of manganese iron ore beneficiation machines, the competition among manufacturers will increase, leading many manufacturers to lower the price of manganese iron ore beneficiation machines in order to gain a more advantageous position. When the competitiveness is low, a market monopoly problem of manganese iron ore beneficiation machines will be formed, and the price will increase.
(2) Regional differences: Different regions have different economic, social and transportation conditions, resulting in certain differences in consumption levels, which will also affect the price of manganese iron ore beneficiation machines.
If you ask about the specific price of a manganese iron ore beneficiation machine per hour, it’s unlikely that any manufacturer can give you a precise answer. The sheer number of models makes selection difficult, and different manufacturers offer varying prices. The best advice is to consult several manufacturers, compare their cost-effectiveness, and choose the manufacturer that offers the best manganese iron ore beneficiation machine.
Recommendations for purchasing manganese iron ore beneficiation machines:
Ore property analysis: For manganese oxide ore, magnetic separation + gravity separation combined process is preferred, while for manganese carbonate ore, flotation is the main process.
Capacity matching: Select equipment models according to processing volume to avoid “overloading” or operating beyond capacity.
Manufacturer services: Prioritize manufacturers that provide testing support and after-sales maintenance.
The selection of manganese-iron ore beneficiation machines requires comprehensive consideration of ore characteristics, process requirements, and economic efficiency. Currently, the mainstream equipment in the market is centered around magnetic separators and gravity separators, supplemented by crushing and grinding equipment. Manganese-iron ore beneficiation machine manufacturers occupy a significant market share due to their technological advantages. In the future, with technological advancements, efficient, intelligent, and environmentally friendly equipment will become the industry mainstream.
More and more fields are beginning to require silicates, and the number of manufacturers producing manganese iron ore beneficiation machines is also increasing. However, not only are prices inconsistent, but the quality is also mixed. As mentioned above, processing equipment is very important. If poor-quality, unreliable equipment is selected, not to mention the quality of the finished product, operational safety will be a major concern. If downtime and production stoppages occur frequently later on, it may affect the entire production line, increase operating costs, and reduce economic benefits. So how do you choose the right manganese iron ore beneficiation machine manufacturer?
We highly recommend our company. With decades of experience, we have extensive expertise in producing manganese iron ore beneficiation machines. Our equipment is reliable and boasts numerous technological advantages, making us a great choice. Our factory is a highly professional manufacturer of manganese iron ore beneficiation machines, recognized by a wide range of users. We adhere to a people-oriented business philosophy, prioritizing the interests of our customers. Our manganese iron ore beneficiation machines are not only energy-efficient and high-quality, but also very economical and affordable. Compared to similar quality machines on the market, our manufacturing costs are reduced by 30,000-50,000 RMB. The ex-factory price is our selling price, essentially selling at zero profit. Therefore, our manganese iron ore beneficiation machines are extremely inexpensive and affordable, making them a high-performance ore beneficiation equipment with excellent value for money.
