Nickel ore is processed through beneficiation, extraction, and enrichment to obtain nickel metal, which has wide applications in modern industry. Beneficiation recovery rate and concentrate grade are crucial for ensuring the economic benefits of mining enterprises, and the selection and configuration of nickel ore beneficiation equipment are paramount to guaranteeing concentrate grade and beneficiation recovery rate.
Nickel ore is processed through beneficiation, extraction, and enrichment to obtain nickel metal, which has wide applications in modern industry. Beneficiation recovery rate and concentrate grade are crucial for ensuring the economic benefits of mining enterprises, and the selection and configuration of nickel ore beneficiation equipment are paramount to guaranteeing concentrate grade and beneficiation recovery rate. Nickel ore equipment manufacturers will introduce the classification of nickel ore equipment, its prices, and how to configure nickel ore beneficiation equipment for nickel ore beneficiation plants of different sizes.
Nickel ore has unique characteristics, and ordinary processing equipment cannot fully realize its utilization value. Therefore, nickel ore equipment manufacturers have specifically analyzed the mineralogical characteristics of nickel ore and tailored a complete set of nickel ore equipment, mainly composed of jaw crushers , ball mills , flotation machines , spiral classifiers , mixing tanks, dryers, etc. Each piece of equipment has unparalleled performance and quality advantages.
Nickel ore beneficiation equipment principle:
Nickel ore is first fed into a crusher for pre-screening via a feeder. After crushing, the ore enters the screening stage; qualified material proceeds to the next stage, while unqualified material is returned for further crushing. The qualified product is then ground in a grinding mill to the required particle size and classified. Flotation is accomplished by adding different reagents to the flotation machine. There are three main types of flotation machines: mechanically agitated, aerated, and gas-separated. The flotation process includes scavenging, roughing, and cleaning, ultimately yielding nickel concentrate. The flotation slurry is then concentrated and dewatered in a thickener. The filter cake is conveyed to a concentrate bin for storage, while the tailings are dewatered using a tailings dry discharge process and moved to a tailings dam for storage.
Classification of Nickel Mining Equipment
1. Crushing equipment
Crushing equipment is used to break large chunks of nickel ore into smaller particles for subsequent grinding and beneficiation. Common crushing equipment includes:
Jaw crusher: suitable for coarse crushing, capable of processing larger pieces of ore, with a large crushing ratio, simple structure, and convenient maintenance.
Cone crusher: suitable for medium and fine crushing, producing uniform particle size, and is suitable for processing ores of medium hardness.
Impact crusher: suitable for fine and ultrafine crushing, producing fine-sized products, and suitable for processing softer ores.
2. Grinding equipment
Grinding equipment is used to further grind crushed ore to fully liberate nickel minerals. Common grinding equipment includes:

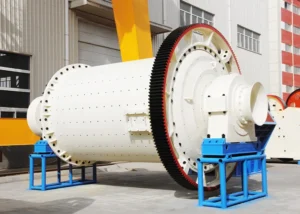

Ball mill: The most widely used grinding equipment, suitable for ores of various hardness, with adjustable grinding fineness, suitable for large-scale production.
Rod mill: Suitable for coarse grinding, producing more uniform particle size of ore, and is suitable for processing harder ores.
Autogenous grinding mill: It uses the ore itself as the grinding medium, has high grinding efficiency, and is suitable for processing ores with high hardness and high density.
3. Grading equipment
Classification equipment is used to classify the ore slurry after grinding according to particle size, ensuring that the grinding product achieves the required fineness. Common classification equipment includes:

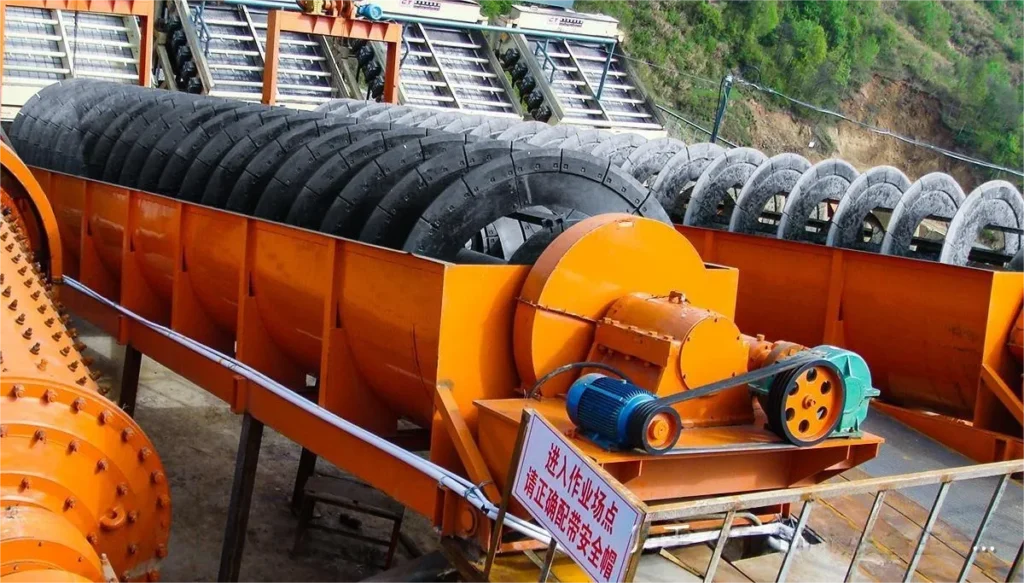

Spiral classifier: simple structure, good classification effect, suitable for processing coarser slurry.
Hydrocyclones: High classification efficiency, small footprint, suitable for processing finer mineral slurries.
Fine screening: High classification accuracy, suitable for processing ultrafine mineral slurries.

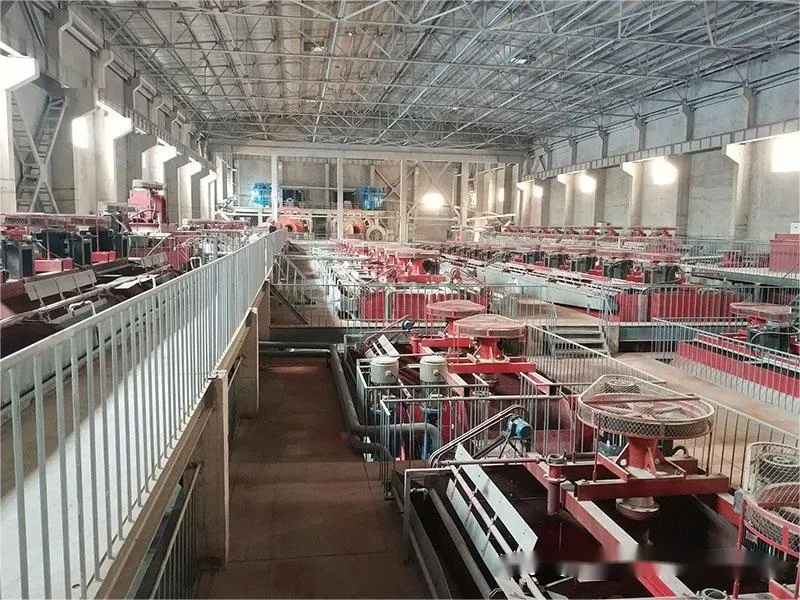

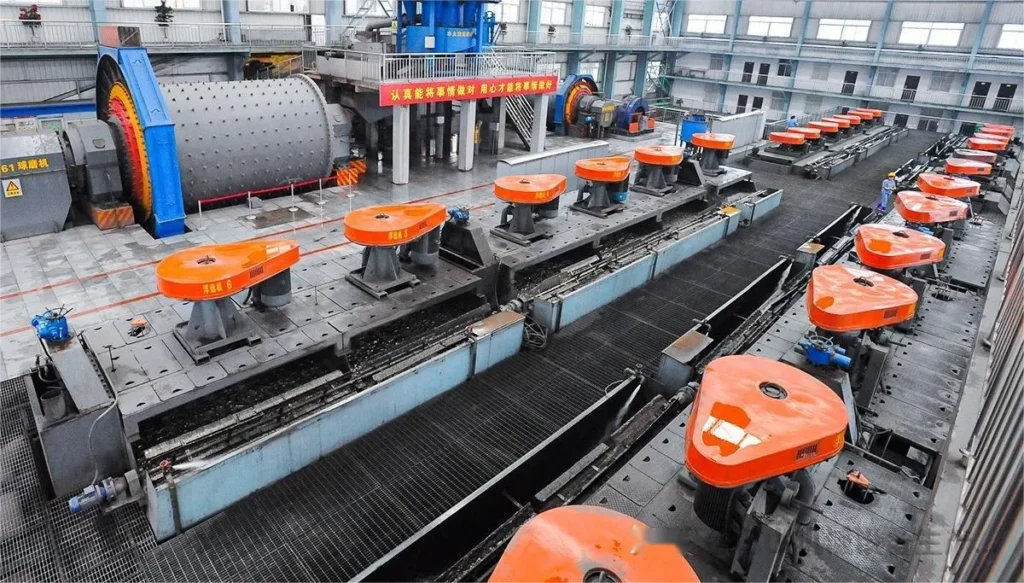

4. Flotation equipment
Flotation equipment is used to separate nickel minerals from gangue through the action of chemical reagents. Common flotation equipment includes:

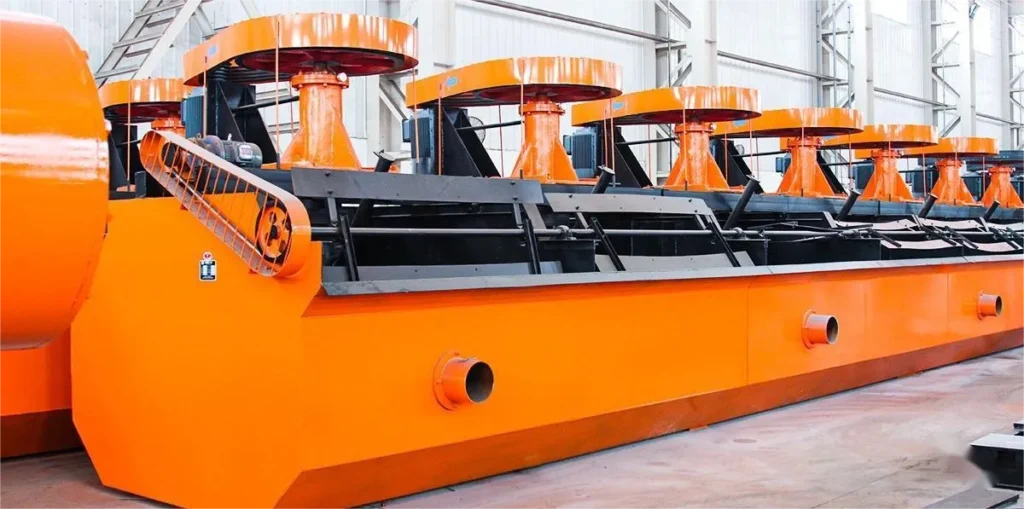

Mechanical stirring flotation machine: simple structure, easy to operate, suitable for processing various types of ores.
Aerated mechanical stirring flotation machine: large aeration volume, good flotation effect, suitable for processing ores that are difficult to flotate.
Aerated flotation machine: low energy consumption, low maintenance cost, suitable for processing fine-grained ores.
5. Magnetic separation equipment
Magnetic separation equipment is used to separate magnetic and non-magnetic minerals by using a magnetic field. Common magnetic separation equipment includes:

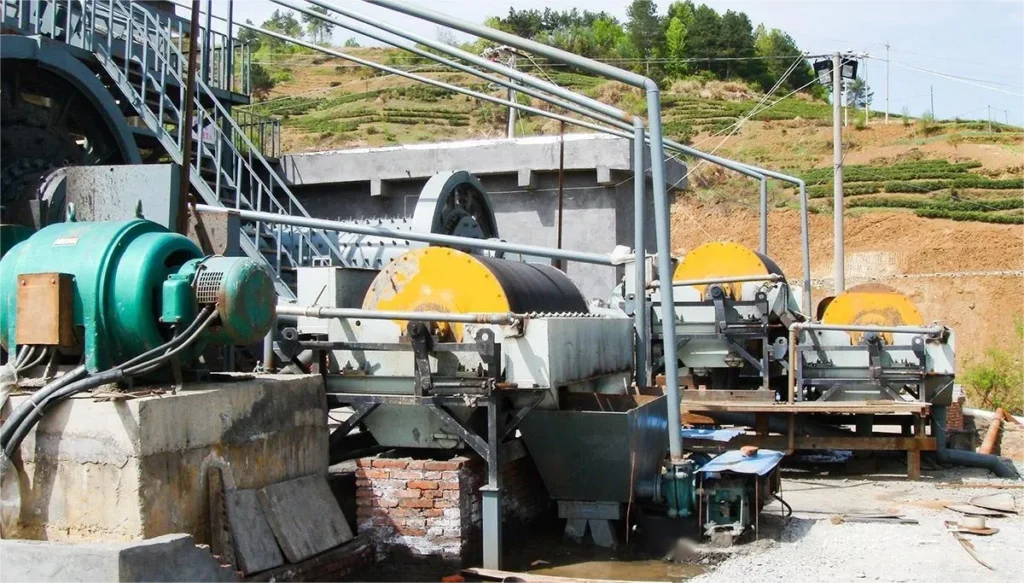

Permanent magnet drum separator: simple structure, easy maintenance, suitable for processing ores with strong magnetic properties.
Electromagnetic separator: The magnetic field strength is adjustable, it has a wide range of applications, and is suitable for processing ores with weak magnetic properties.
6. Reselection equipment
Gravity separation equipment utilizes the density differences of minerals to separate them through gravity separation. Common gravity separation equipment includes:
Jigs: have a large processing capacity and are suitable for processing coarser ores.

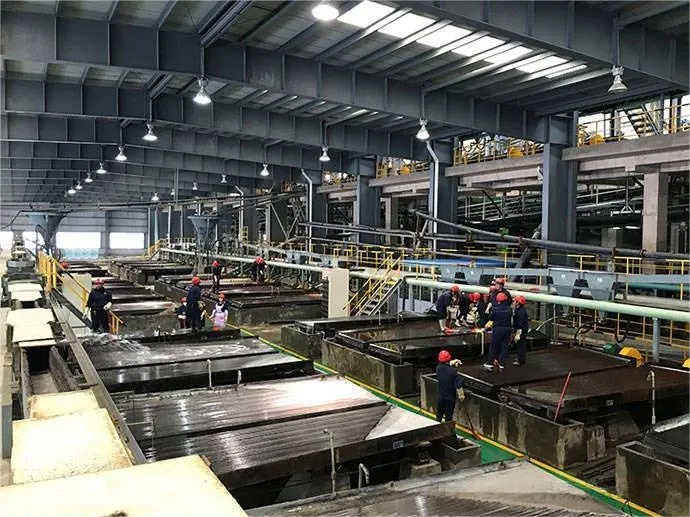

Shaking table: High sorting accuracy, suitable for processing finer ores.
Spiral chute: Simple structure, easy maintenance, suitable for processing medium-sized ore.
7. Dehydration equipment
Dewatering equipment is used to remove moisture from concentrates, improving concentrate grade and transportation efficiency. Common dewatering equipment includes:
Filter press: It has a good dewatering effect and is suitable for processing various types of concentrates.
Filter press: High dewatering efficiency, suitable for processing high-concentration concentrates.
Vacuum filters: low energy consumption, low maintenance costs, suitable for processing concentrates that are difficult to dewater.
There are various methods for nickel ore beneficiation, including gravity separation, magnetic separation, flotation and electrostatic separation.
Gravity separation: This method is mainly suitable for processing nickel oxide ore. The nickel ore equipment separates the nickel ore from impurities through gravity separation.
Magnetic separation: suitable for nickel sulfide ores rich in magnetism. Nickel ore equipment uses magnetic force to extract nickel-containing substances from the ore.
Flotation: Effective for different types of nickel ore. Nickel ore equipment uses reagents to separate nickel minerals from waste rock, and it is currently the most widely used method.
Electrostatic separation: Nickel ore equipment uses a strong electric field to separate nickel minerals from the raw ore, which is suitable for nickel products requiring high purity.
There are several key steps in the nickel ore beneficiation process that ensure the quality of the final product and the extraction efficiency.
Crushing and grinding: The large pieces of ore are initially crushed and ground into smaller particles to facilitate subsequent beneficiation processes.
Screening and grading: The ground ore is screened and preliminarily graded according to particle size to improve the accuracy of subsequent operations.
Selection and enrichment: Based on the physicochemical properties of different minerals, appropriate methods are used for selection and enrichment to extract different components separately.
Dehydration and drying: The final step is dehydration and drying to obtain a clean concentrate product, which is then ready for subsequent smelting.
Configuration scheme for nickel mining equipment
1. Nickel ore processing equipment for small-scale nickel ore beneficiation plants
Suitable for nickel ore beneficiation plants with a relatively small processing capacity (generally 100-300 tons/day), key points for nickel ore equipment configuration include:
Crushing equipment: Select a jaw crusher with a processing capacity of 10-20 tons/hour.
Grinding equipment: Select a small ball mill, with the grinding fineness controlled at -0.074mm accounting for 60%.
Classification equipment: Select a spiral classifier to ensure that the grinding product reaches the required fineness.
Flotation equipment: Select one mechanical agitation flotation machine with a processing capacity of 5-10 tons/hour.
Dewatering equipment: Select a filter with a processing capacity of 5-10 tons/hour.
2. Nickel ore processing equipment for medium-sized nickel ore beneficiation plants
Suitable for medium-capacity concentrators (typically 300-1000 tons/day), nickel ore equipment configuration options include:
Crushing equipment: Select one jaw crusher and one cone crusher, with a processing capacity of 50-100 tons/hour.
Grinding equipment: Select two ball mills, with the grinding fineness controlled at -0.074mm, accounting for 70%.
Classification equipment: Select two hydrocyclones to ensure that the grinding product reaches the required fineness.
Flotation equipment: Select two pneumatic mechanical agitation flotation machines with a processing capacity of 20-50 tons/hour.
Dewatering equipment: Select two filter presses with a processing capacity of 20-50 tons/hour.
3. Nickel ore processing equipment for large-scale nickel ore beneficiation plants
Suitable for large-scale ore processing plants (typically 1000~3000 tons/day), nickel ore equipment configuration options include:
Crushing equipment: Select two jaw crushers and two cone crushers, with a processing capacity of 200-500 tons/hour.
Grinding equipment: Select four ball mills, with 80% of the grinding fineness controlled at -0.074mm.
Classification equipment: Select four hydrocyclones to ensure that the grinding products reach the required fineness.
Flotation equipment: Select four aerated flotation machines with a processing capacity of 100-200 tons/hour.
Dewatering equipment: Select four vacuum filters with a processing capacity of 100-200 tons/hour.
In addition to considering the size of the concentrator, when selecting nickel ore processing equipment, we should also pay attention to the concentrator process flow, energy consumption, and environmental protection issues. The equipment should be energy-efficient, high-quality, and have a high additive ratio.
Ranking of nickel ore equipment manufacturers; which nickel ore equipment manufacturer is the best?
Our factory was one of the earliest companies in China to promote integrated EPC (Engineering, Procurement, and Construction) services for mining projects. We have already undertaken numerous nickel ore beneficiation EPC projects. In the field of nickel ore beneficiation EPC, our company has always regarded quality as life and customers as paramount, taking a responsible attitude towards every nickel ore equipment product and every nickel ore beneficiation project, and wholeheartedly serving our users.
In practical applications, nickel ore equipment manufacturers establish different types of engineering command centers for each nickel ore beneficiation EPC project, tailored to the specific characteristics of each project. A vice president is specifically in charge of the nickel ore beneficiation EPC project to coordinate and effectively manage all aspects of the work, including engineering design, equipment manufacturing, commodity inspection and customs clearance, packaging and transportation, equipment installation, process debugging, technical training, and civil construction.
Meanwhile, our company owns its own mining development company and has been engaged in the development of various metal and non-metal mines for more than 10 years. The development of each new nickel ore equipment product is carried out through experimental research on our own mine, which ensures strict quality control in the overall contracting of nickel ore beneficiation.
Packaging and transportation of nickel ore processing equipment: The entire process adheres to strict incoming inspection, in-process inspection, and final inspection systems and standards. Targeted technical training can be provided based on the overall nickel ore beneficiation contract. The user experience department tracks product quality, conducts regular user follow-ups, and promptly improves product performance based on user needs, continuously enhancing product quality. We strictly fulfill the compensation responsibilities stipulated in the contract. Lifetime preferential supply of spare parts and lifetime maintenance of the entire machine are provided. After the warranty period expires, users will only be charged the cost price for maintenance and technical services. Xinhai will provide spare parts and consumables at preferential ex-factory prices for life. Upon receiving a user’s request for assistance, the nickel ore processing equipment manufacturer will respond within one hour, and for major issues, we will arrive on-site as quickly as possible. For nickel ore beneficiation equipment malfunctions caused by the user’s responsibility, we will be responsible for repairs at reasonable charges.
There are many factors that influence the price of nickel ore mining equipment, which can be summarized as follows:
1. Cost and expense
Cost price has a significant impact on sales price. It mainly includes raw material procurement, labor costs, and technological content. When comprehensively considering the price of nickel ore equipment, this factor is the primary influencing factor and has a certain guiding significance for the setting of nickel ore equipment prices.
2. Quality factors
High-quality nickel ore mining equipment naturally commands a higher price. The advantages of our nickel ore mining equipment lie in its superior quality. Our company places great emphasis on equipment quality, as only high-quality equipment can prevent abnormal situations from occurring during customer use. Our factory also ensures fair and reasonable pricing for our nickel ore mining equipment, which is one of the key reasons why our equipment is so popular.
3. Industry competition
Industry competition can cause significant price fluctuations. Only excellent nickel ore equipment manufacturers can stand out in the fierce competition. High-quality nickel ore crushers have the greatest advantage and potential in the competition. Nickel ore equipment manufacturers attach great importance to the quality of their equipment and have strict control over every aspect of the manufacturing process. Therefore, our equipment has a longer service life.
4. Supply and demand relationship
This factor is the most volatile factor affecting the price of nickel ore equipment. It is closely related to market conditions and economic circumstances. Only by comprehensively considering these factors, identifying patterns, and formulating reasonable pricing strategies for nickel ore equipment according to these patterns can prices be more competitive. Our factory has a deep understanding of the economic situation in recent years; therefore, the prices of our nickel ore equipment can achieve the highest level of customer satisfaction.
How much does nickel mining equipment cost?
Our factory is one of the better nickel ore equipment manufacturers in China. We have unique insights into nickel ore equipment pricing. So, how much does nickel ore equipment cost? Through analysis and comparison, we have found that our nickel ore equipment manufacturers offer reasonable and competitive prices. Prices are not fixed; some are expensive, some are cheap. The reasonableness of our nickel ore equipment prices lies primarily in the fairness of our pricing strategy. We always analyze the reasonableness of prices from the customer’s perspective and measure the fairness of prices from the perspective of market changes. By comparing with other manufacturers, we have found that our nickel ore equipment prices are reasonable and more likely to meet the actual purchasing needs of our customers.
