1. What Is a Ball Mill?

A ball mill is a grinding device that uses grinding media (typically steel or ceramic balls) rotating inside a cylindrical shell to crush and grind materials. It is widely used in mineral processing, cement production, ceramic manufacturing, and chemical raw material processing. It is the key equipment for reducing material particle size from millimeters down to microns.

The ball mill is known as the “heart” of a concentrator—upstream processes (blasting, crushing, screening) all prepare feed for the ball mill, while downstream processes (flotation, magnetic separation, leaching) all depend on the quality of the ball mill’s output.

2. Ball Mill Working Principle: Synergy of Impact and Attrition

The core working principle of a ball mill is based on the synergy of two physical forces: Impact and Attrition.

2.1 Impact Principle (Breaking Large Particles)

As the shell rotates, centrifugal force lifts the grinding balls up the shell wall to a certain height. When gravity overcomes centrifugal force, the balls fall freely, striking the material below with tremendous kinetic energy. This “hammering” effect is similar to smashing rocks with a hammer and is the primary force for breaking down larger particles.

2.2 Attrition Principle (Refining Fine Powder)

At the same time, the grinding balls tumble and slide against each other and the shell liners, generating continuous friction and shear forces. This “sandpaper polishing” effect gradually wears down particle surfaces and is the key mechanism for producing ultra-fine, uniform powder.

2.3 Synergy of Both Forces

Impact and attrition do not occur in isolation—they happen simultaneously in varying proportions:

• Impact acts as the “coarse mill,” first breaking large chunks into smaller pieces
• Attrition acts as the “fine mill,” then refining fragments into the final powder

This dual mechanism enables ball mills to handle a wide range of materials, from brittle ores to tough substances.

3. Ball Mill Structure Explained

To understand the ball mill working principle, you must first be familiar with its structural components:

3.1 Overall Structure Diagram

The above images show the 3D structure of a ball mill, which mainly consists of the following components:

3.2 Wet Ball Mill Exploded View

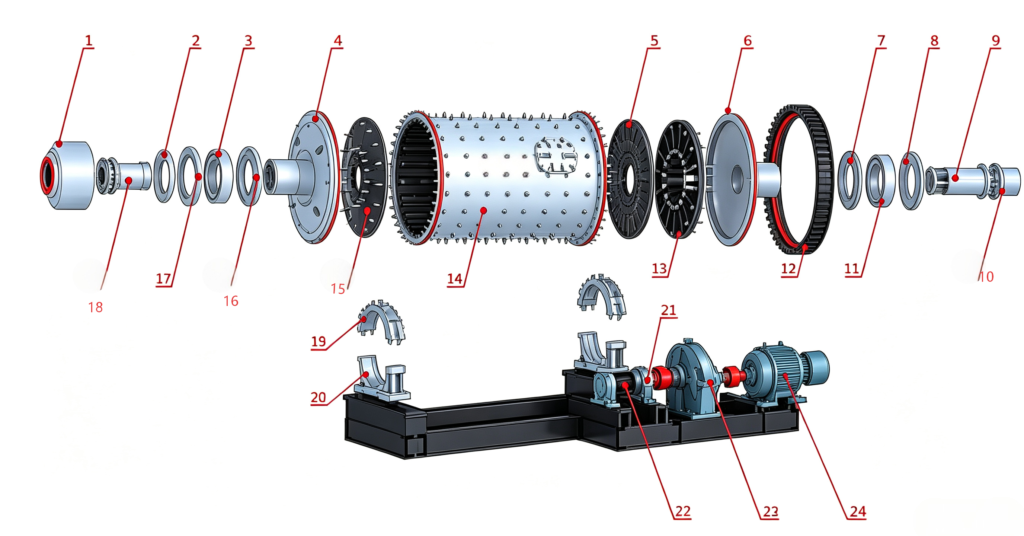

Wet Energy-Saving Grate Ball Mill Exploded View

1.Feeder 2. Sealed cap 3. Bearing 4. Feed end cap 5. Grid plate 6. Feed outlet cap 7. Gland 8. Gland 9. Grid discharging hole 10. Discharging connector 11. Bearing 12. Big gear wheel 13. Feed steel plate 14. Grid cylinder 15. End lining plate 16. Gland 17. Gland 18. Feed inlet 19. Bearing cap 20. Bearing seat 21. Pinion bearing seat 22. Pinion 23. Reducer 24. Motor

Wet ball mills additionally include:

• Grate Plate: Controls discharge particle size
• Guide Ribs: Directs material flow
• Sealing Cover: Prevents slurry leakage

4. Three Motion States of Grinding Media

The rotational speed of the shell directly determines the motion pattern of the grinding media, which in turn affects grinding efficiency:

4.1 Cascading Motion — Low-Speed Grinding

At lower speeds, grinding balls are not lifted very high. Instead, they slowly roll down the shell wall, rubbing against each other. This state prioritizes attrition and is suitable for producing ultra-fine powder.

4.2 Cataracting Motion — Medium-Speed Impact

As speed increases, grinding balls are carried to higher positions before falling freely, creating a “waterfall” effect. This state delivers strong impact force and is suitable for rapidly breaking large chunks of material.

4.3 Centrifuging Motion — High-Speed Failure

When the speed reaches the critical speed, centrifugal force completely overcomes gravity, and the grinding balls cling to the shell wall without falling. At this point, no grinding occurs at all—this is a forbidden operating zone.

Most ball mills operate at approximately 75% of critical speed as the optimal working point.

5. Five Key Factors Affecting Ball Mill Efficiency

5.1 Shell Rotational Speed

Speed determines the ratio of impact to attrition:

• High speed (cataracting): Suitable for coarse crushing, handling large chunks
• Low speed (cascading): Suitable for fine grinding, producing ultra-fine powder

5.2 Grinding Media Selection

表格

5.3 Filling Ratio

• Optimal filling ratio: Grinding media should occupy approximately 35%-45% of the cylinder volume
• Too low: Insufficient grinding events, low efficiency
• Too high: Restricts ball movement, reduces impact force

5.4 Slurry Concentration (Wet Grinding)

• Optimal concentration: Solids content of 65%-80% by weight
• Too thick: High viscosity restricts media movement
• Too thin: Reduced contact between media and ore; fine particles are carried out prematurely

5.5 Liner Design

Liners not only protect the shell but also help lift grinding balls through their shape (e.g., stepped, wave-shaped), directly affecting impact height and grinding efficiency.

6. Ball Mill Working Process

6.1 Dry Ball Mill Process

1. Loading: Material and grinding balls are added to the cylinder in the correct ratio
2. Grinding: The motor drives the cylinder to rotate, impacting and grinding the material
3. Discharge: Once the desired fineness is reached, the product is discharged through the outlet

6.2 Wet Ball Mill Process

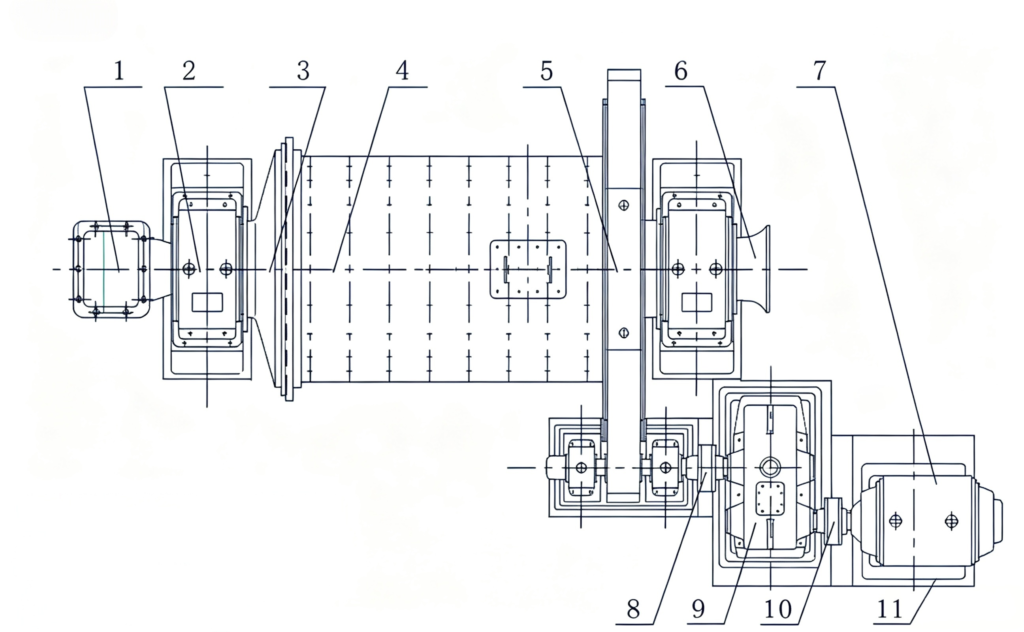

1 Feeding Section 2 Main Bearing Section 3 Feed End Section 4 Cylinder Body 5 Transmission Part 6 Discharge End Section 7 Motor 8 Coupling 9 Reducer 10 Coupling 11 Foundation Base

Wet ball mills additionally add water or other liquids to form a slurry. After grinding, fine particles flow out with the slurry, while coarse particles are retained by the grate plate for further grinding.

6.3 Closed-Circuit Operation

Modern concentrators typically use a closed-circuit system: Ball mill discharge enters a classification device (such as a hydrocyclone), coarse particles are returned to the ball mill for regrinding, and fine particles proceed to downstream processes. A typical closed-circuit system will grind the material 2-3 times.

7. Applications of Ball Mills

Due to their strong versatility and large processing capacity, ball mills are widely used in:

8. Ball Mill Optimization Tips

8.1 Selecting Parameters Based on Goals

8.2 Routine Maintenance Essentials

• Regularly monitor -200 mesh utilization: The most sensitive efficiency indicator
• Track specific energy consumption (kWh/ton): Rising energy consumption usually signals media wear or ore hardness changes
• Timely steel ball replenishment: Worn steel balls reduce impact force
• Inspect liner wear: Severely worn liners cannot effectively lift grinding balls
