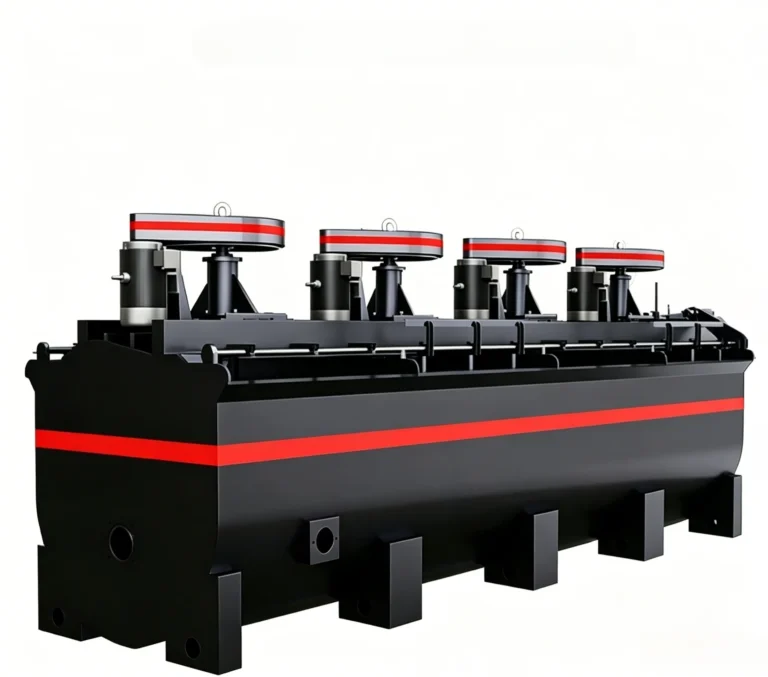

This flotation machine is designed for coarse particles and is suitable for small‑ and medium‑sized enterprises processing non‑ferrous, ferrous, precious metal, and non‑metallic minerals. The feed size ranges from 45% to 98% passing 0.074 mm, with a pulp density less than 45%. Its characteristics are as follows:
This flotation machine is designed for coarse particles and is suitable for small‑ and medium‑sized enterprises processing non‑ferrous, ferrous, precious metal, and non‑metallic minerals. The feed size ranges from 45% to 98% passing 0.074 mm, with a pulp density less than 45%. Its characteristics are as follows:
(1) Self‑priming of air, with an air suction capacity up to 1.2 m³·m⁻²·min⁻¹;
(2) Self‑priming of pulp – can draw feed pulp and froth middlings from outside the machine, allowing a flat layout between flotation cells;
(3) Good pulp circulation inside the cell, stable pulp surface, no swirling or surging;
(4) High separation efficiency, improving the recovery of both coarse and fine particles;
(5) Low power consumption – saves 15–20% of energy compared with similar flotation machines of the same specification, while still drawing sufficient air and pulp;
(6) Long service life of wear parts – in particular, the life of the impeller and stator is more than double that of similar flotation machines.

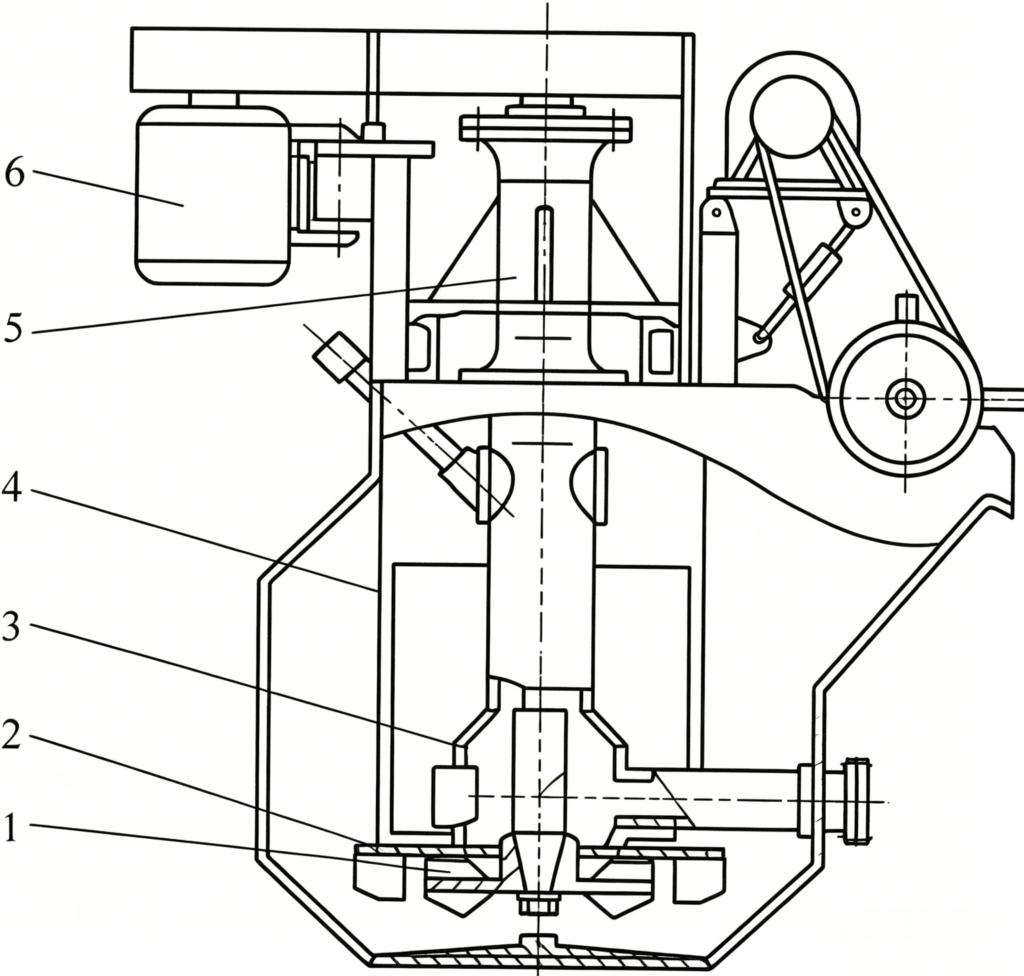

Figure 12‑8 Schematic diagram of the GF mechanical agitation flotation machine
1—Impeller; 2—Cover plate (stator); 3—Central tube;
4—Cell tank; 5—Bearing housing; 6—Electric motor
The GF flotation machine is shown in Figure 12‑8, and its technical parameters are listed in Table 12‑7.
Table 12‑7 Technical parameters of GF flotation machine
| Model | Volume (m³) | Cell dimensions (L×W×D) / mm×mm×mm | Installed power (kW) | Capacity (m³·min⁻¹) | Air suction volume (m³·m⁻²·min⁻¹) | Scraper motor power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GF‑0.35 | 0.35 | 700×700×730 | 1.5 | 0.1–0.2 | 1.2 | 0.75 | 470 |
| GF‑0.7 | 0.7 | 900×900×900 | 3 | 0.1–0.4 | 1.2 | 1.1 | 932 |
| GF‑1.1 | 1.1 | 1100×1100×1100 | 5 | 0.2–0.5 | 1.2 | 1.1 | 1370 |
| GF‑2 | 2 | 1400×1400×1150 | 7.5 | 0.3–1.0 | 1.2 | 1.5 | 1750 |
| GF‑3 | 3 | 1500×1850×1200 | 11 | 0.5–1.5 | 1.2 | 1.5 | 2230 |
| GF‑4 | 4 | 1600×2150×1250 | 15 | 0.5–2.0 | 1.2 | 1.5 | 2585 |
| GF‑6 | 6 | 2000×2500×1300 | 22 | 1.0–3.0 | 1.2 | 1.5 | 3300 |
| GF‑8 | 8 | 2200×2900×1400 | 30 | 1.0–4.0 | 1.2 | 1.5 | 4130 |
| GF‑10 | 10 | 2200×2900×1700 | 30 | 2.0–6.0 | 1.2 | 1.5 | 4500 |
| GF‑16 | 16 | 2850×3800×1700 | 45 | 3.0–8.0 | 1.2 | 2.2 | 8320 |
| GF‑20 | 20 | 2850×3800×2000 | 45 | 4.0–10.0 | 1.2 | 2.2 | 8670 |
| GF‑24 | 24 | 3150×4150×2000 | 55 | 5.0–12.0 | 1.2 | 2.2 | 8970 |
| GF‑28 | 28 | 2150×4150×2300 | 55 | 5.0–14.0 | 1.2 | 2.2 | 9480 |
| GF‑42 | 42 | 3600×4800×2650 | 75 | 8.0–12.0 | 1.2 | 3 | 19400 |
