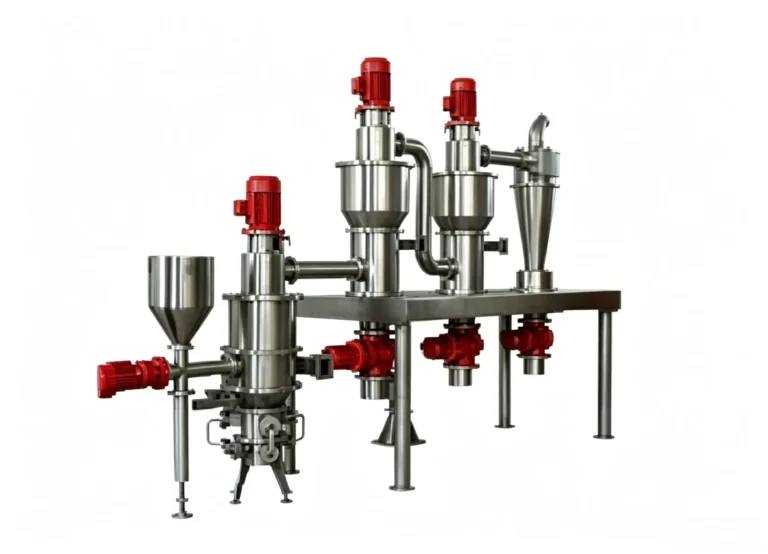

This machine is a dry ultrafine grinding and classifying equipment combining fluidized bed jet milling technology with self-classification technology. The jet mill, together with a cyclone separator, dust collector, induced draft fan, and electrical control cabinet, forms a complete grinding system. Compressed air, after filtration and drying, is injected at high speed into the grinding chamber through Laval nozzles. The material is crushed by collision, friction, and shearing at the intersection of multiple high-pressure air jets. Under the suction of the fan, the crushed material is classified by an impeller. Fine particles enter the cyclone separator for collection, while coarse particles fall back into the grinding zone for further grinding.

Widely used in chemicals, pharmaceuticals, battery materials, metallurgy, kaolin, talc, quartz, graphite, alumina, flame-retardant materials, ceramics, pigments, food additives, colorants, luminescent materials, rare earths, resins, carbon black, aluminum hydroxide, activated carbon, copper powder, pharmaceuticals, and pesticides.

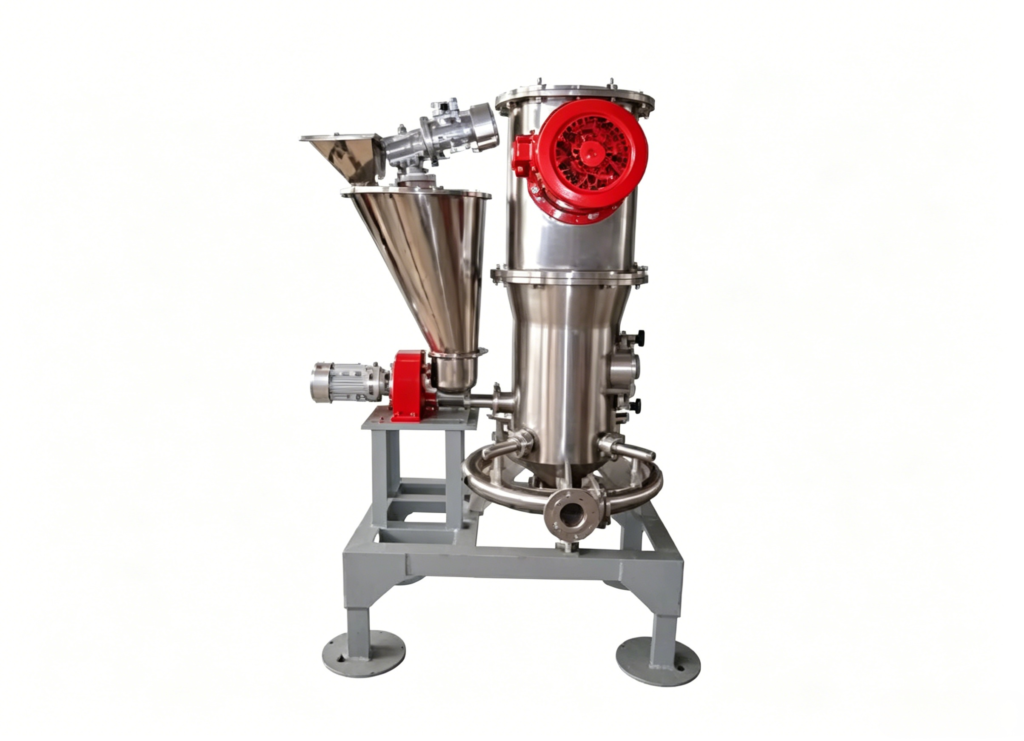

SQW Series Jet Mill

◆ Horizontally mounted impeller.
◆ Variable frequency speed control for flexible adjustment of particle size distribution.
◆ Particle size range: D50 = 1–45 μm.

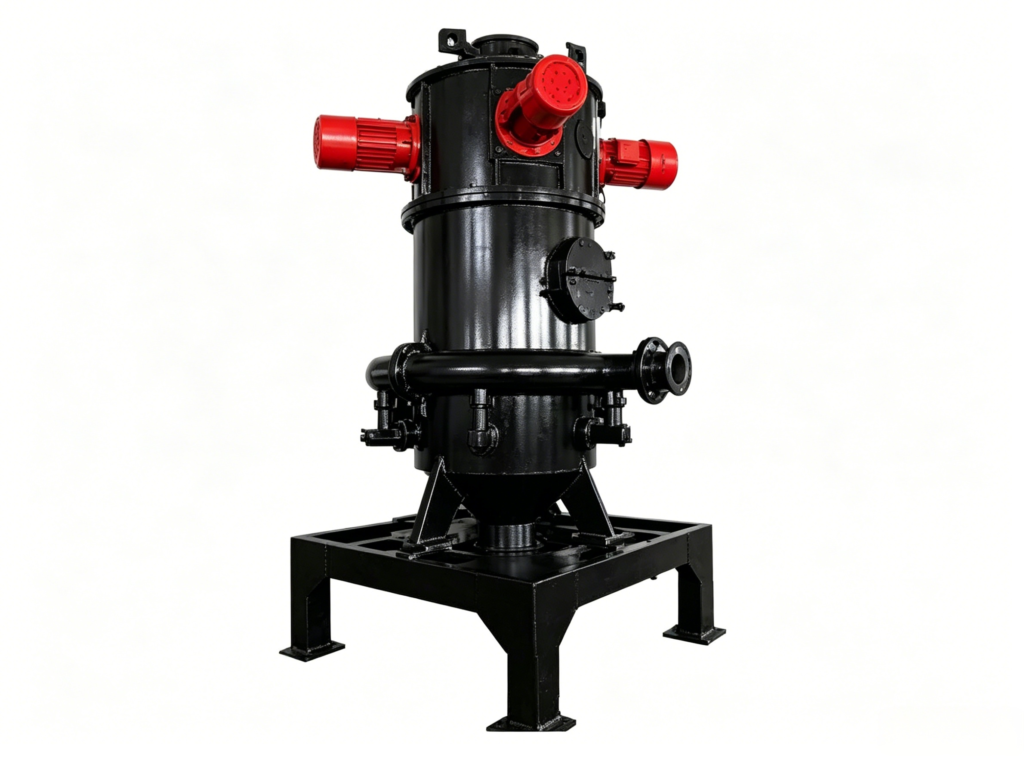

SQW Series Jet Mill
◆ Horizontally mounted impellers with multiple impeller installation.
◆ Particle size range: D50 = 1–45 μm.
◆ Variable frequency speed control for flexible adjustment of particle size distribution.
◆ High efficiency, large output, low energy consumption.

SQW Series Jet Mill

Model / Parameter	SQW3	SQW6	SQW10	SQW15	SQW20	SQW30	SQW40
Capacity (kg/h)	10–100	20–250	60–500	150–800	200–1200	300–1800	400–2500
Air consumption (m³/min)	3	6	10	15	20	30	40
Feed size (mm)	<2	<2	<2	<2	<2	<2	<2
Product fineness (μm)	2–150	2–150	2–150	2–150	2–150	2–150	2–150
Installed power (kW)	30	50	90	110	150	220	300

SQL Series Fluidized Bed Jet Mill

Parameter / Specification	SQL3	SQL6	SQL10	SQL15	SQL20	SQL30	SQL40
Feed size (mm)	<3	<3	<3	<5	<5	<5	<5
Product fineness d97 (μm)	2–150	2–150	2–150	2–150	2–150	2–150	2–150
Production capacity (kg/h)	50	150	300	600	1000	1500	2000
Air consumption (m³/min)	3	6	10	15	20	30	40
Installed power (kW)	30	65	90	120	160	200	300

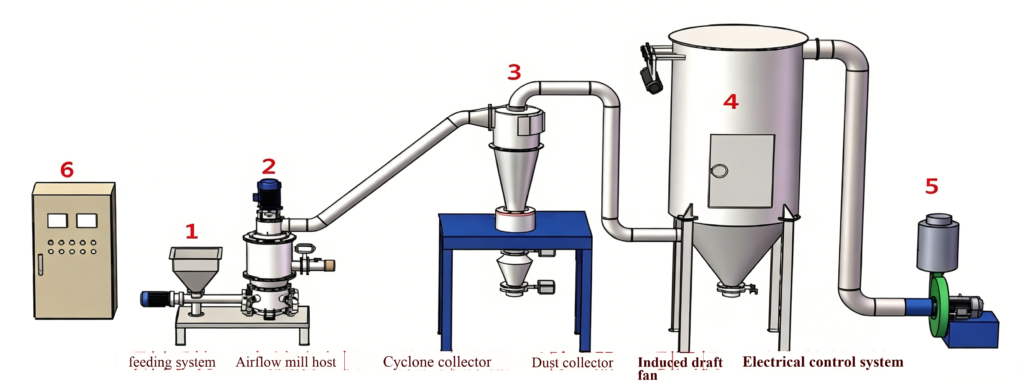

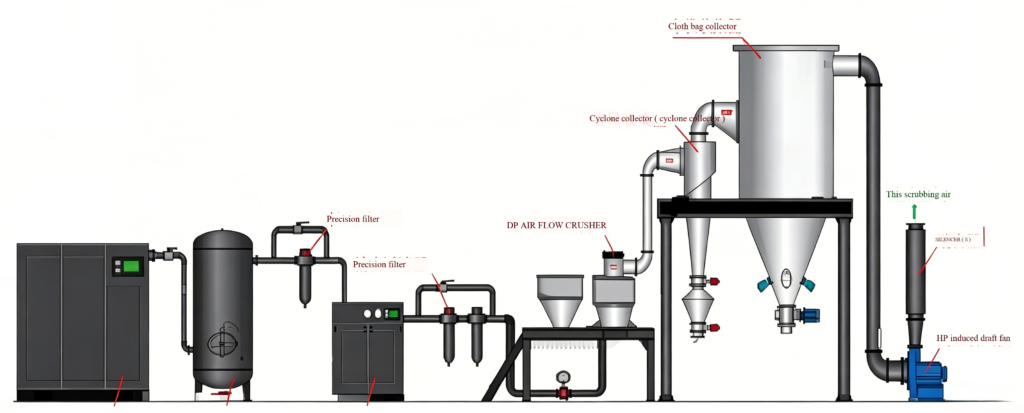

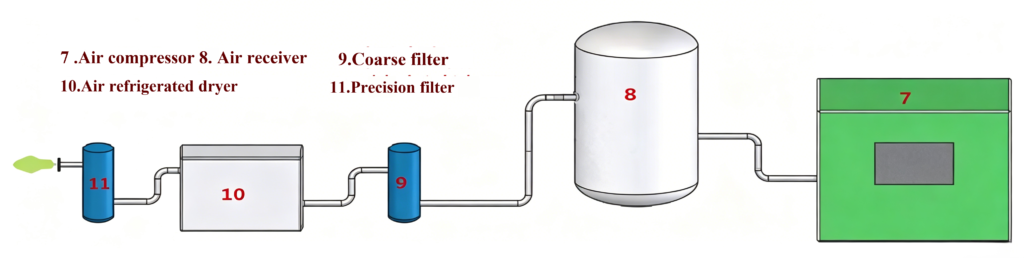

Flow chart

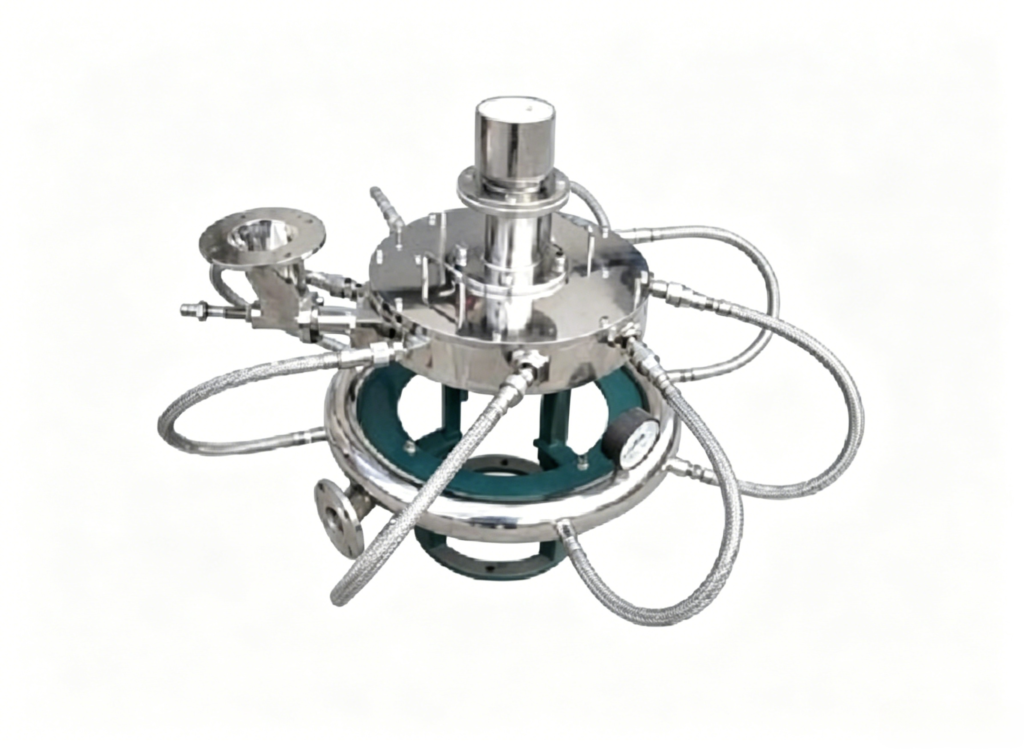

SQP Series Jet Mill
◆ Applicable particle size range: D50 = 1.5–45 μm.
◆ Ultra-fine, high-purity, and intelligent operation.
◆ Multiple nozzles for high crushing efficiency.
◆ Available with ceramic lining, compliant with GMP requirements.
◆ Particularly suitable for deagglomeration and restoration of agglomerates.

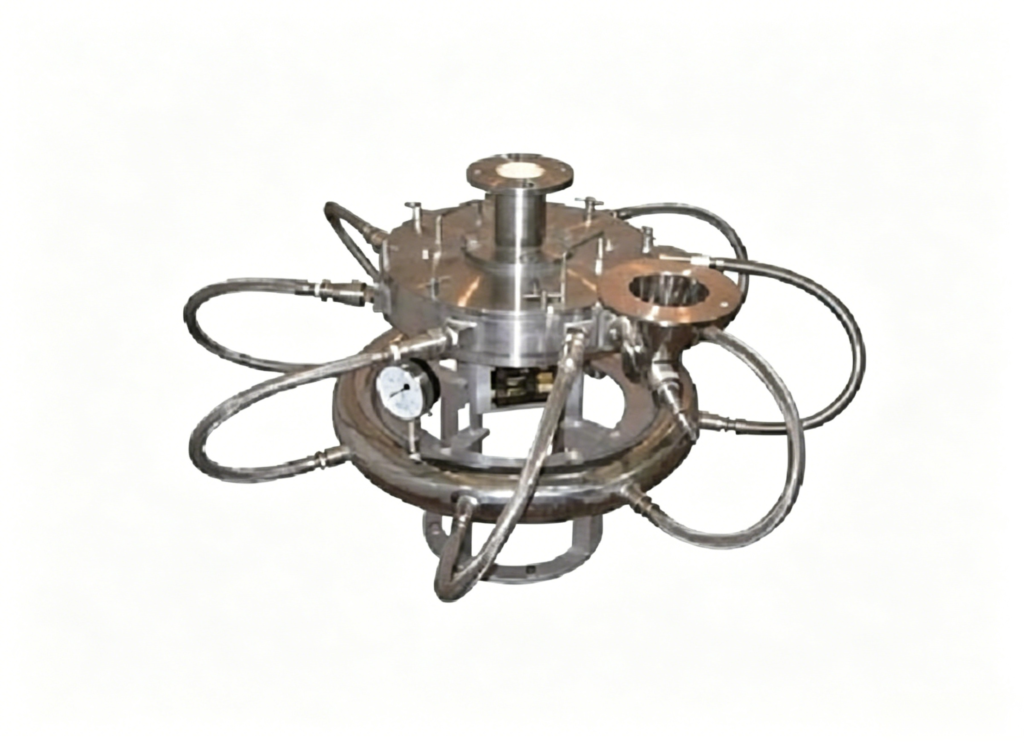

SQP Series Jet Mill
◆ Crushing particle size range: D50 = 1.5–45 μm.
◆ Built-in classifying rotor with variable frequency speed control for particle size adjustment.
◆ Multiple nozzles for high crushing efficiency.
◆ No dead corners inside the chamber; easy to disassemble and clean.
◆ Compliant with GMP certification requirements.

Technical Parameters

Parameter / Specification	SQP2	SQP3	SQP6	SQP10	SQP20	SQP40
Feed size (mm)	<4	<4	<4	<4	<4
Product fineness D97 (μm)	2–150	2–150	2–150	2–150	2–150	0–156
Production capacity (kg/h)	2–20	5–50	1–100	20–300	100–600	150–1200
Air consumption (m³/min)	2	3	6	10	20	40
Installed power (kW)	10	26–37	47–68
